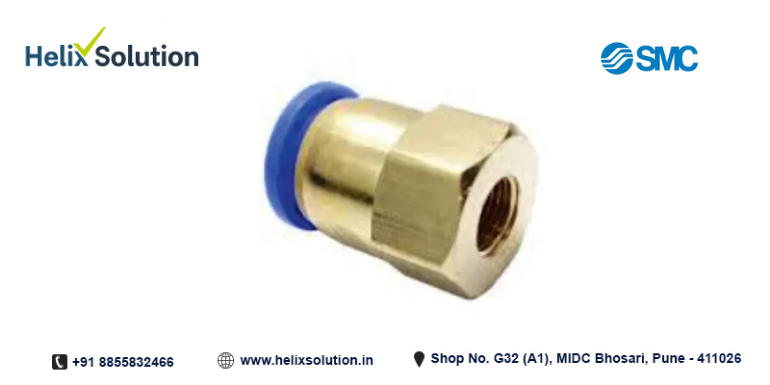

SMC Pneumatic Female Connector
SMC Pneumatic Female Connector
Technical Specifications
|
Specification |
Details |
|---|---|
|
Tube Sizes Supported |
4 mm, 6 mm, 8 mm, 10 mm, 12 mm |
|
Thread Sizes |
M5, 1/8", 1/4", 3/8", 1/2" BSP (Female) |
|
Connection Type |
Push-in + Female Thread |
|
Body Material |
Nickel-Plated Brass / Stainless Steel |
|
Operating Pressure |
0 to 1.0 MPa |
|
Operating Temperature |
0°C to 60°C |
|
Configuration |
Female Connector |
|
Application |
Pneumatic tubing connection |
|
Compatible Tubing |
PU / Nylon Tubing |
