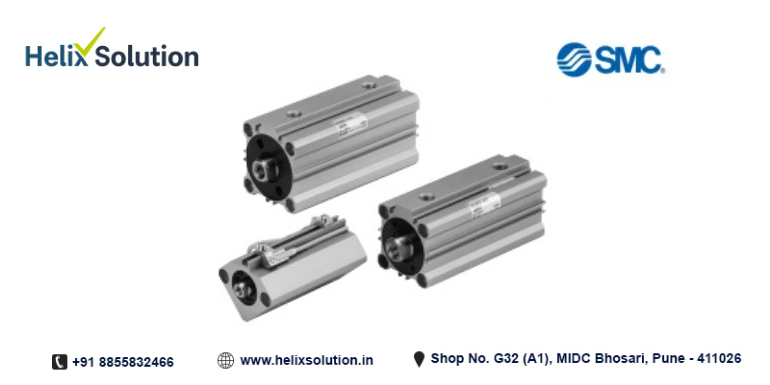

SMC Hydraulic Cylinder (CHQ / CHQW Series - 3.5 MPa)

Series

CHQ Series (Single Rod) / CHQW Series (Double Rod) - Compact Hydraulic Cylinder

Action

Double acting / Single rod, Double acting / Double rod

Fluid

Hydraulic fluid

Nominal Pressure

3.5 MPa

Proof Pressure

5.0 MPa

Maximum Allowable Pressure

3.5 MPa

Minimum Operating Pressure

0.3 MPa

Bore Sizes (mm)

20, 32, 40, 50, 63, 80, 100 mm

Body Material

Aluminum

Ambient and Fluid Temperature

Without auto switch: -10°C to 80°C | With auto switch: -10°C to 60°C

Piston Speed

8 to 100 mm/s

Cushion

None

Rod End Thread

Standard: Female thread, Male thread

Stroke Length Tolerance

+1.0 / 0 mm

Mounting Type

Basic type (Through hole)

20

5, 10, 15, 20, 25, 30, 35, 40, 45, 50

32

5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100

40

5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100

50

10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100

63

10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100

80

10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100

100

10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100
