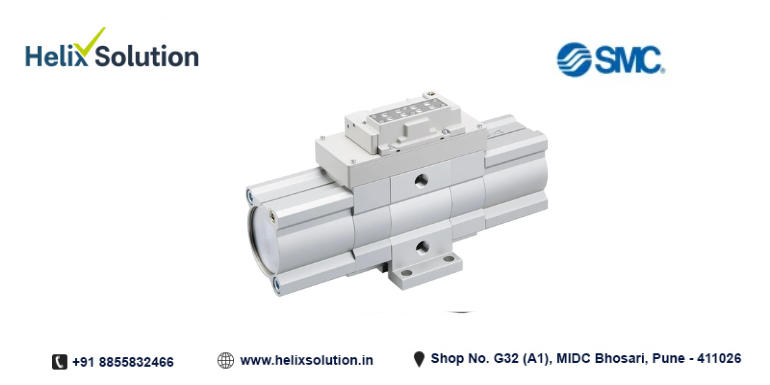

SMC Booster Regulators
SMC Booster Regulators
Technical Specifications
| Specification / Option | VBA10A-02 | VBA20A-03 | VBA40A-04 | VBA22A-03 | VBA42A-04 | VBA43A-04 | VBA11A-02 |
|---|---|---|---|---|---|---|---|
| Fluid | Compressed air | Compressed air | Compressed air | Compressed air | Compressed air | Compressed air | Compressed air |
| Pressure increase ratio | Twice | Twice | Twice | Twice | Twice | Twice | 2 to 4 times |
| Pressure adjustment mechanism | Knob-operated with relief mechanism | Knob-operated with relief mechanism | Knob-operated with relief mechanism | Air-operated | Air-operated | Knob-operated with relief mechanism | Knob-operated with relief mechanism |
| Max. flow rate (L/min ANR) | 230 | 1000 | 1900 | 1000 | 1900 | 1600 | 70 |
| Set pressure range (MPa) | 0.2 to 2.0 | 0.2 to 1.0 | 0.2 to 1.0 | 0.2 to 1.0 | 0.2 to 1.0 | 0.2 to 1.6 | 0.4 to 2.0 |
| Supply pressure range (MPa) | 0.1 to 1.0 | 0.1 to 0.9 | 0.1 to 0.9 | 0.1 to 0.9 | 0.1 to 0.9 | 0.1 to 1.0 | 0.1 to 1.0 |
| Proof pressure (MPa) | 3 | 1.5 | 1.5 | 1.5 | 1.5 | 2.4 | 3 |
| Port size (Rc) IN/OUT/EXH | 1/4 | 3/8 | 1/2 | 3/8 | 1/2 | 1/2 | 1/4 |
| Pressure gauge port size (Rc) | 1/8 | 1/8 | 1/8 | 1/8 | 1/8 | 1/8 | 1/8 |
| Tank connection port | 1/4 | 3/8 | 1/2 | 3/8 | 1/2 | 1/2 | 1/4 |
| Ambient & fluid temperature | 2 to 50°C (No freezing) | 2 to 50°C (No freezing) | 2 to 50°C (No freezing) | 2 to 50°C (No freezing) | 2 to 50°C (No freezing) | 2 to 50°C (No freezing) | 2 to 50°C (No freezing) |
| Installation | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal |
| Lubrication | Grease (Non-lube) | Grease (Non-lube) | Grease (Non-lube) | Grease (Non-lube) | Grease (Non-lube) | Grease (Non-lube) | Grease (Non-lube) |
| Weight (kg) | 0.84 | 3.9 | 8.6 | 3.9 | 8.6 | 8.6 | 0.89 |
| Rc/G Model – Standard | VBA10A-02 / VBA10A-F02 | VBA20A-03 / VBA20A-F03 | VBA40A-04 / VBA40A-F04 | VBA22A-03 / VBA22A-F03 | VBA42A-04 / VBA42A-F04 | VBA43A-04 / VBA43A-F04 | VBA11A-02 / VBA11A-F02 |
| Rc/G – Pressure Gauge (G) | G27-20-01 | G36-10-01 | G36-10-01 | KT-VBA22A-7 | G36-10-01 | G27-20-01 | G27-20-01 |
| Rc/G – Silencer (N) | AN20-02 | AN30-03 | AN40-04 | AN30-03 | AN40-04 | AN40-04 | AN20-02 |
| Rc/G – High-noise Reduction Silencer (S) | ANA1-02 | ANA1-03 | ANA1-04 | ANA1-03 | ANA1-04 | ANA1-04 | ANA1-02 |
| Rc/G – Elbow for Silencer (L) | KT-VBA10A-18 | — | — | — | — | — | KT-VBA10A-18 |
| NPT/NPTF Model | VBA10A-N02* / VBA10A-T02* | VBA20A-N03* / VBA20A-T03* | VBA40A-N04* / VBA40A-T04* | VBA22A-N03* / VBA22A-T03* | VBA42A-N04* / VBA42A-T04* | VBA43A-N04* / VBA43A-T04* | VBA11A-N02* / VBA11A-T02* |
| NPT/NPTF – Pressure Gauge (when Nil) | G27-20-01 | G36-10-N01 | G36-10-N01 | KT-VBA22A-7N | G36-10-N01 | G27-20-N01 | G27-20-01 |
| NPT/NPTF – Pressure Gauge (when "Z") | G27-P20-01-X30 | G36-P10-N01-X30 | G36-P10-N01-X30 | KT-VBA22A-8N | G36-P10-N01-X30 | G27-P20-N01-X30 | G27-P20-01-X30 |
| NPT/NPTF – Silencer (N) | AN20-N02 | AN30-N03 | AN40-N04 | AN30-N03 | AN40-N04 | AN40-N04 | AN20-N02 |
| NPT/NPTF – High-noise Reduction Silencer (S) | — | ANA1-N03 | ANA1-N04 | ANA1-N03 | ANA1-N04 | ANA1-N04 | — |
| NPT/NPTF – Elbow for Silencer (L) | KT-VBA10A-18N | — | — | — | — | — | — |
