Photoelectric Sensors

Photoelectric Sensors

E3FA · E3JK · E3Z series — versatile photoelectric sensing for all applications

E3FA-TN11

E3FA-TN11

Through-beam · M18 barrel · Plastic
  • Sensing methodThrough-beam
  • OutputNPN
  • Sensing distance20 m
  • Light sourceRed LED
  • Operation modeL-ON / D-ON
  • Connection2 m cable
  • HousingM18 threaded

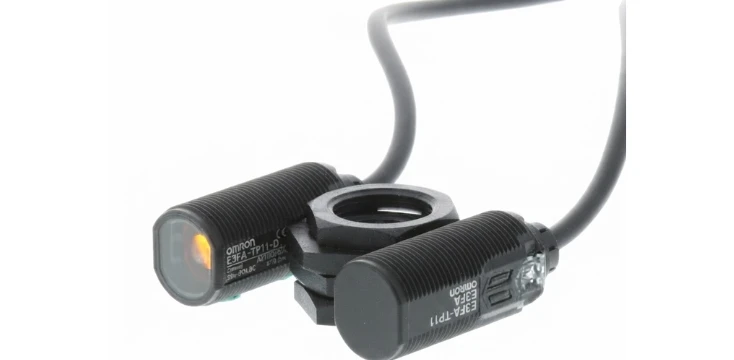

E3FA-TP11 Through-beam

E3FA-TP11

Through-beam · M18 barrel · Plastic
  • Sensing methodThrough-beam
  • OutputPNP
  • Sensing distance20 m
  • Light sourceRed LED
  • Operation modeL-ON / D-ON
  • Connection2 m cable
  • HousingM18 threaded
E3FA-RN11 Retro-reflective

E3FA-RN11

Retro-reflective · M18 barrel · Plastic
  • Sensing methodRetro-reflective
  • OutputNPN
  • Sensing distance4 m
  • Light sourceRed LED
  • Operation modeL-ON / D-ON
  • Connection2 m cable
  • HousingM18 threaded
E3FA-RP11 Retro-reflective

E3FA-RP11

Retro-reflective · M18 barrel · Plastic
  • Sensing methodRetro-reflective
  • OutputPNP
  • Sensing distance4 m
  • Light sourceRed LED
  • Operation modeL-ON / D-ON
  • Connection2 m cable
  • HousingM18 threaded
E3FA-DN11 Diffuse

E3FA-DN11

Diffuse · M18 barrel · Plastic
  • Sensing methodDiffuse
  • OutputNPN
  • Sensing distance100 mm
  • Light sourceRed LED
  • Operation modeL-ON / D-ON
  • Connection2 m cable
  • HousingM18 threaded
E3FA-DP11 Diffuse

E3FA-DP11

Diffuse · M18 barrel · Plastic
  • Sensing methodDiffuse
  • OutputPNP
  • Sensing distance100 mm
  • Light sourceRed LED
  • Operation modeL-ON / D-ON
  • Connection2 m cable
  • HousingM18 threaded
E3FA-DN12 Diffuse

E3FA-DN12

Diffuse · M18 barrel · Plastic
  • Sensing methodDiffuse
  • OutputNPN
  • Sensing distance300 mm
  • Light sourceRed LED
  • Operation modeL-ON / D-ON
  • Connection2 m cable
  • HousingM18 threaded
E3FA-DP12 Diffuse

E3FA-DP12

Diffuse · M18 barrel · Plastic
  • Sensing methodDiffuse
  • OutputPNP
  • Sensing distance300 mm
  • Light sourceRed LED
  • Operation modeL-ON / D-ON
  • Connection2 m cable
  • HousingM18 threaded
E3FA-DN13 Diffuse

E3FA-DN13

Diffuse · M18 barrel · Plastic
  • Sensing methodDiffuse
  • OutputNPN
  • Sensing distance1 m
  • Light sourceRed LED
  • Operation modeL-ON / D-ON
  • Connection2 m cable
  • HousingM18 threaded
E3FA-DP13 Diffuse

E3FA-DP13

Diffuse · M18 barrel · Plastic
  • Sensing methodDiffuse
  • OutputPNP
  • Sensing distance1 m
  • Light sourceRed LED
  • Operation modeL-ON / D-ON
  • Connection2 m cable
  • HousingM18 threaded

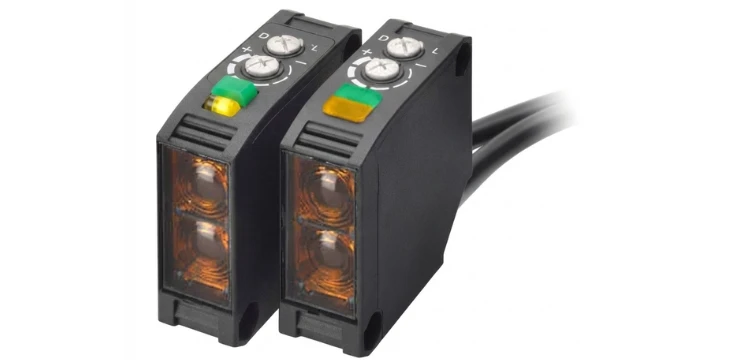

E3JK-TR11 Through-beam

E3JK-TR11

Through-beam · Square body
  • Sensing methodThrough-beam
  • OutputRelay (AC/DC)
  • Sensing distance40 m
  • Light sourceRed LED
  • Operation modeL-ON / D-ON selectable
  • Connection2 m cable
  • HousingSquare
E3JK-RR12-C Retro-reflective

E3JK-RR12-C

Retro-reflective · Square body
  • Sensing methodRetro-reflective (polarized)
  • OutputRelay (AC/DC)
  • Sensing distance6 m
  • Light sourceRed LED
  • Operation modeL-ON / D-ON selectable
  • Connection2 m cable
  • HousingSquare
E3JK-DR11 Diffuse

E3JK-DR11

Diffuse · Square body
  • Sensing methodDiffuse
  • OutputRelay (AC/DC)
  • Sensing distance2.5 m
  • Light sourceRed LED
  • Operation modeL-ON / D-ON selectable
  • Connection2 m cable
  • HousingSquare
Diffuse

E3JK-DR12-C

Diffuse · Square body
  • Sensing methodDiffuse
  • OutputRelay (AC/DC)
  • Sensing distance300 mm
  • Light sourceRed LED
  • Operation modeL-ON / D-ON selectable
  • Connection2 m cable
  • HousingSquare

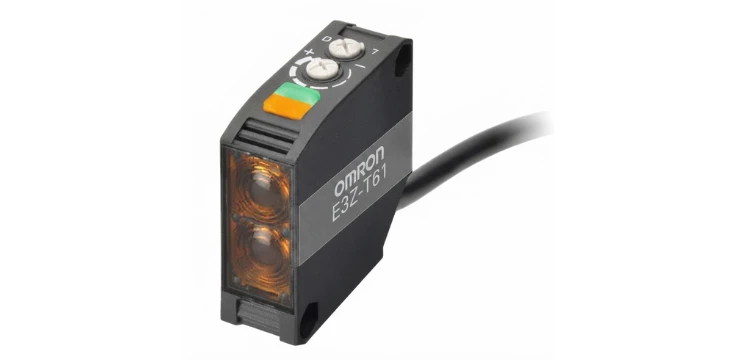

E3Z-T61 Through-beam

E3Z-T61

Through-beam · Rectangular housing
  • Sensing methodThrough-beam
  • OutputNPN
  • Sensing distance15 m
  • Light sourceInfrared LED
  • Operation modeL-ON / D-ON
  • Connection2 m cable
  • HousingRectangular
E3Z-T81 Through-beam

E3Z-T81

Through-beam · Rectangular housing
  • Sensing methodThrough-beam
  • OutputPNP
  • Sensing distance15 m
  • Light sourceInfrared LED
  • Operation modeL-ON / D-ON
  • Connection2 m cable
  • HousingRectangular
E3Z-R61 Retro-reflective

E3Z-R61

Retro-reflective · Rectangular housing
  • Sensing methodRetro-reflective
  • OutputNPN
  • Sensing distance4 m
  • Light sourceRed LED
  • Operation modeL-ON / D-ON
  • Connection2 m cable
  • HousingRectangular

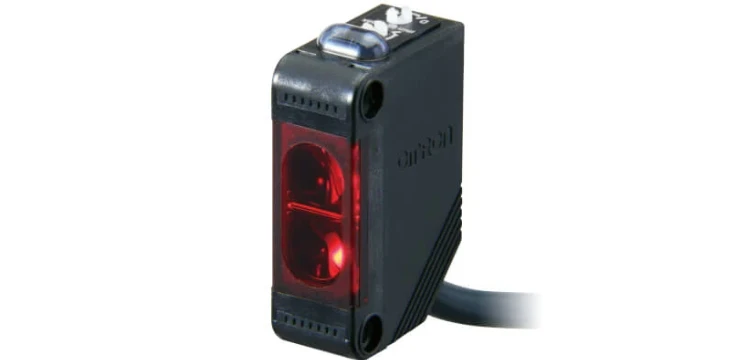

E3Z-R81 Retro-reflective

E3Z-R81

Retro-reflective · Rectangular housing
  • Sensing methodRetro-reflective
  • OutputPNP
  • Sensing distance4 m
  • Light sourceRed LED
  • Operation modeL-ON / D-ON
  • Connection2 m cable
  • HousingRectangular

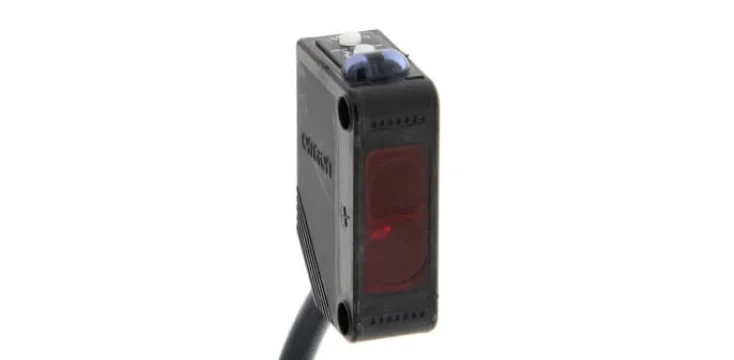

E3Z-D61 Diffuse

E3Z-D61

Diffuse · Rectangular housing
  • Sensing methodDiffuse
  • OutputNPN
  • Sensing distance100 mm
  • Light sourceRed LED
  • Operation modeL-ON / D-ON
  • Connection2 m cable
  • HousingRectangular
E3Z-D81 Diffuse

E3Z-D81

Diffuse · Rectangular housing
  • Sensing methodDiffuse
  • OutputPNP
  • Sensing distance100 mm
  • Light sourceRed LED
  • Operation modeL-ON / D-ON
  • Connection2 m cable
  • HousingRectangular
E3Z-D62 Diffuse

E3Z-D62

Diffuse · Rectangular housing
  • Sensing methodDiffuse
  • OutputNPN
  • Sensing distance1 m
  • Light sourceInfrared LED
  • Operation modeL-ON / D-ON
  • Connection2 m cable
  • HousingRectangular

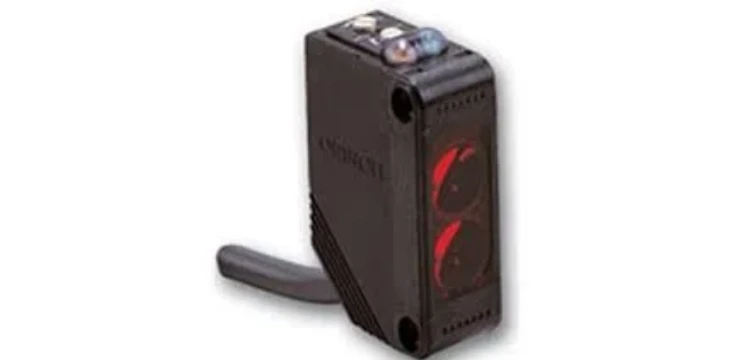

E3Z-D82 Diffuse

E3Z-D82

Diffuse · Rectangular housing
  • Sensing methodDiffuse
  • OutputPNP
  • Sensing distance1 m
  • Light sourceInfrared LED
  • Operation modeL-ON / D-ON
  • Connection2 m cable
  • HousingRectangular
