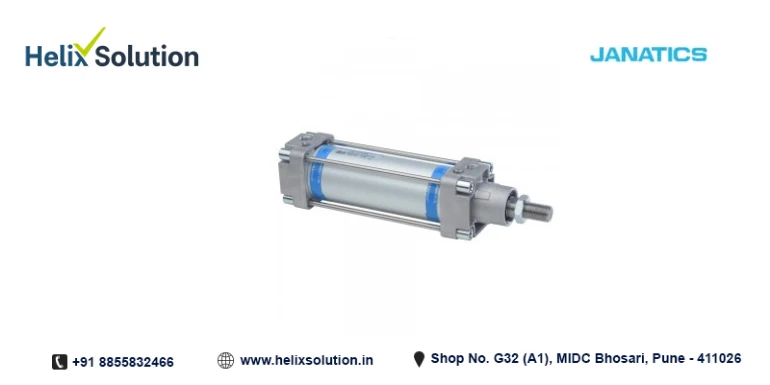

Janatics Tie Rod Cylinder (A12 , A13)
Janatics Tie Rod Cylinder A12 , A13
Technical Specifications
| Specification | Details |
|---|---|
| Cylinder bore Ø (mm) | 32, 40, 50, 63, 80, 100 |
| Cushion stroke (mm) | 21, 23, 23, 23, 28, 28 |
| Standard strokes* (mm) | 25, 50, 80, 100, 125, 160, 200, 250, 300, 320, 400, 500 |
| Medium | Compressed air – filtered – lubricated |
| Working pressure | 0.5 to 10 bar |
| Ambient temperature | −10° to +60°C |
| Medium temperature | +5° to +50°C |
| Materials of construction | Aluminium, Brass, Nitrile, Steel, Acetal, Iron, Bronze, Polyurethane |
| Mountings | Basic cylinder, Foot mounting, Front flange, Rear flange, Male clevis, Female clevis, Front trunnion, Rear trunnion, Centre trunnion |
| Accessories | Clevis foot bracket, Wall mounting bracket, Trunnion bracket, Rod end fork, Rod end aligner, Rod end spherical eye |
* For non-standard or longer stroke cylinders,
contact your regional dealer or JANATICS.
*Specifications may vary according to the selected Janatics A12 model and configuration.
Contact Helix Solution for exact technical specifications and product selection.
