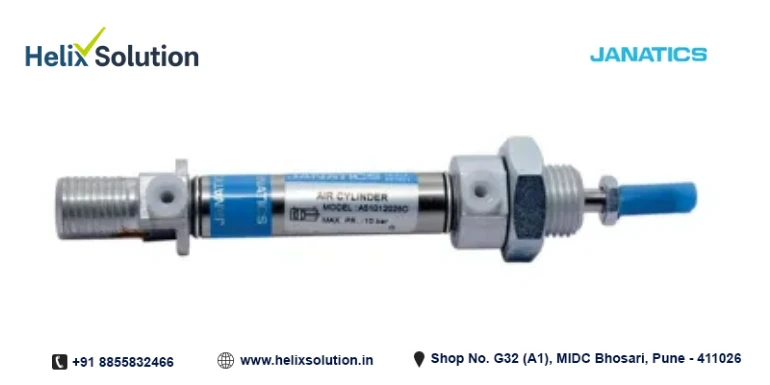

Janatics Round Body Cylinder (A75, A76)
Janatics Round Body Cylinder (A75, A76)
Technical Specifications
| Specification | Details |
|---|---|
| Bore dia (mm) | 32, 40, 50, 63 |
| Cushion stroke (mm) | 12, 15, 15, 15 |
| Standard strokes* (mm) | 25, 40, 50, 80, 100, 125, 160, 200, 250, 300, 320, 400, 500 |
| Medium | Compressed air – filtered – lubricated |
| Working pressure | 0.5 – 10 bar |
| Ambient temperature | −10° to +60°C |
| Medium temperature | +5° to +50°C |
| Materials of construction | Cylinder barrel, Piston rod – SS, Aluminium, Brass, Nitrile, Polyurethane, Steel, Acetal |
| Mountings | Front foot mounting, Double foot mounting, Front trunnion, Rear trunnion |
| Accessories | Clevis foot bracket (Rear end cover side), Clevis foot bracket (Suitable for Front and Rear side), Rod end fork, Rod end aligner, Rod end spherical eye |
* For non-standard or longer stroke cylinders,
contact your regional dealer or JANATICS.
*Specifications may vary according to the selected Janatics Round Body Cylinder (A75, A76)
model and
configuration. Contact Helix Solution for exact technical specifications and product
selection.
