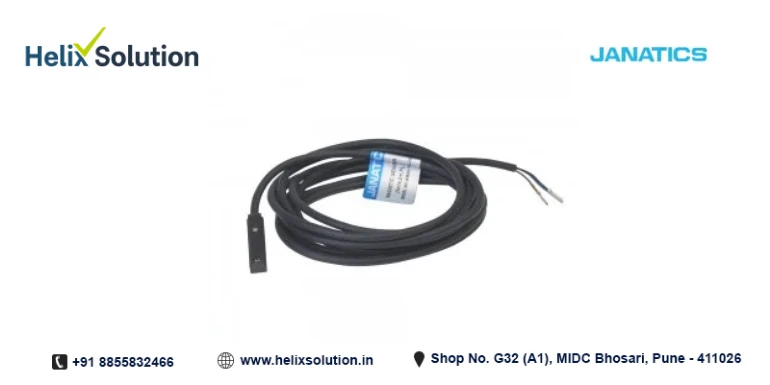

Reed Switch / Auto Switch - SMT Series
Reed Switch / Auto Switch - AM Series
Technical Specifications
| Specification | 2 Wire Reed Switch | 3 Wire Reed Switch | PNP Current Sourcing | NPN Current Sinking |
|---|---|---|---|---|
| Switching logic | SPST Normally open | Solid State Output, Normally open | ||
| Sensor type | 2 Wire reed switch | 3 Wire reed switch | Solid state output (PNP/NPN) | |
| Operating voltage | 5 – 220V AC / DC | 10 – 30 V DC | ||
| Switching current | 100 mA max | |||
| Switching rating | 10 W max | 3 W max | ||
| Current consumption | – | 25 mA @ 24V max | 14 mA @ 24V max | 17 mA @ 24V max |
| Voltage drop | 3.5 V max | 0.05 V max | 2 V max | |
| Leakage current | – | 0.01 mA max | 0.01 mA max | |
| Colour of LED | Red | Yellow | Red | |
| Cable | Ø3.3, 2C, PVC | Ø3.3, 3C, PVC | ||
| Temperature range | −10° to 70°C | |||
| Shock | 30 G | 50 G | ||
| Vibration | 9 G | |||
| Type of protection | IEC 529 | IP 67 | ||
| Protection circuit | None | Power source reverse polarity; Surge suppression | ||
Caution
- Follow above specifications to ensure trouble free operation of sensors.
- Keep sensors away from stray magnetic field to prevent malfunctions.
- For usage / installation instructions, please refer Instruction sheet IS – AM4 – 01 – 01.
