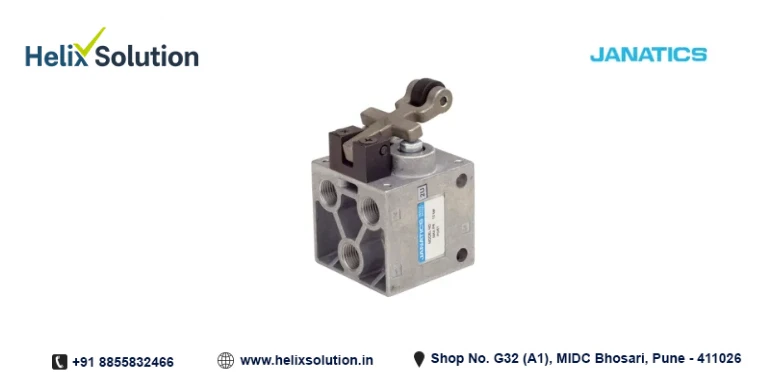

Janatics Pneumatic Roller Lever - DP Series
Janatics Pneumatic Roller Lever - DP Series
Technical Specifications
| Specification | 3/2 | 5/2 |
|---|---|---|
| Model | 3/2 | 5/2 |
| Port size | G1/4 | |
| Ambient temperature | −10° to +60°C | |
| Medium temperature | +5° to +50°C | |
| Maximum working pressure | 10 bar | |
| Medium | Compressed air, Filtered, Lubricated | |
| Flow | (1 ➔ 2) – 600 lpm | (1 ➔ 2) (1 ➔ 4) – 550 lpm |
| Materials of construction | Housing: Aluminium, Seals: Nitrile | |
Panel cut hole dia: Ø20.5 mm
*Specifications may vary according to the selected Janatics model and configuration. Contact
Helix Solution for exact technical specifications and product selection.
