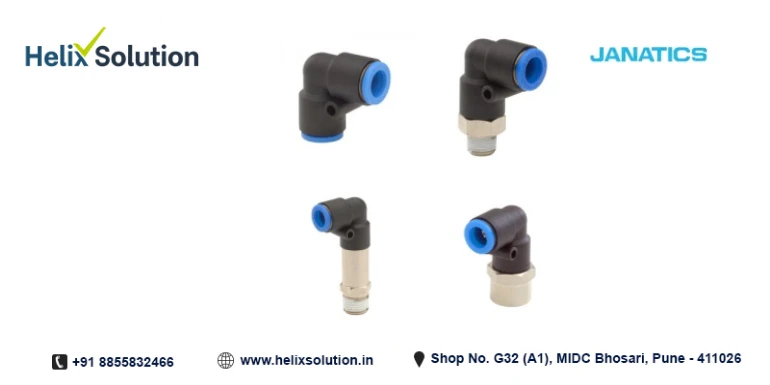

Janatics Pneumatic Male Elbow
Janatics Pneumatic Male Elbow
Technical Specifications
|
Specification |
Details |
|---|---|
|
Medium |
Air # |
|
Max. operating pressure |
10 bar |
|
Ambient temperature |
−10° to +60°C |
|
Medium temperature |
+5° to +50°C |
|
Thread Size |
M5, R 1/8, R 1/4, R 3/8, R 1/2, R 3/4, R 1 |
|
Threaded connection |
Male: R – Taper thread, Female: G – Parallel thread |
|
Applicable tube material |
Nylon, Polyurethane |
|
Applicable tube size (OD) |
Ø4, 6, 8, 10, 12, 14 and 16 mm |
|
Recommended tolerance for tube OD |
± 0.1 mm |
Recommended Minimum Wall Thickness of Tubes
| Tube OD (mm) | Nylon | PU | ||
|---|---|---|---|---|
| Tube OD (mm) | Thickness (mm) | Tube OD (mm) | Thickness (mm) | |
| Ø4 | Ø4 | 1 | Ø4 | 1 |
| Ø6 | Ø6 | Ø6 | 1 | |
| Ø8 | Ø8 | Ø8 | 1.5 | |
| Ø10 | Ø10 | Ø10 | 1.5 | |
| Ø12 | Ø12 | Ø12 | 2 | |
| Ø14 | Ø14 | Ø14 | 2 | |
| Ø16 | – | – | Ø16 | 2.5 |
# For other fluids, contact JANATICS. *Specifications may vary according to the selected Janatics model and configuration. Contact Helix Solution for exact technical specifications and product selection.
