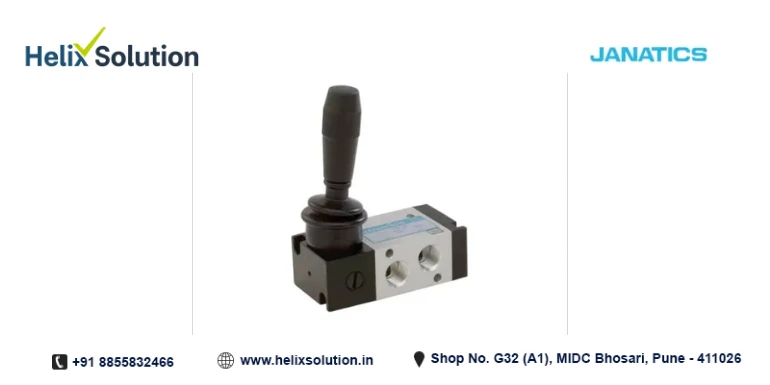

Janatics Pneumatic Hand Lever - DS 2
Janatics Pneumatic Hand Lever - DS 2
Technical Specifications
| Specification | Details |
|---|---|
| Model | DS2 |
| Type | 3/2, 5/2, 5/3 |
| Design | Spool type |
| Port size | Inlet, Outlet, Exhaust – G1/2 |
| Medium | Compressed air – Dry, filtered, lubricated |
| Maximum working pressure | 10 bar |
| Recommended oil for lubrication | ISO VG32 (Servo system 32) |
| Ambient temperature | −10° to +60°C |
| Medium temperature | +5° to +50°C |
| Flow @ | 3500 lts/min |
| Materials of construction | Aluminium, Nitrile, Brass, Acetal |
@ Inlet pressure 6 bar, and pressure drop 1
bar.
*Specifications may vary according to the selected Janatics model and configuration. Contact
Helix Solution for exact technical specifications and product selection.
