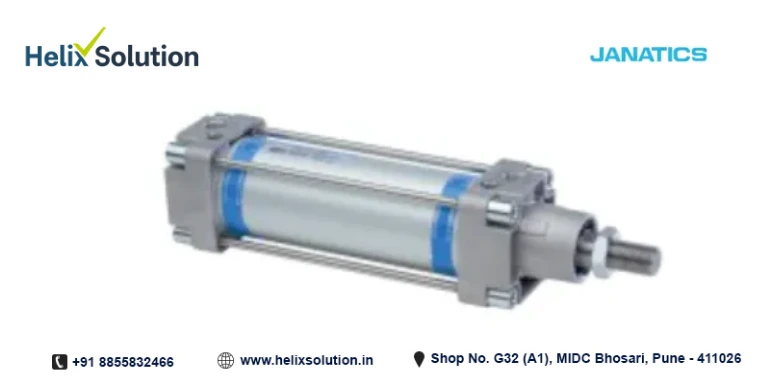

Janatics Pneumatic Cylinder(A27 , A28)
Janatics Pneumatic Cylinder(A27 , A28)
Technical Specifications
| Specification | Details |
|---|---|
| Cylinder bore Ø (mm) | 32, 40, 50, 63, 80, 100 |
| Cushion stroke (mm) | 21, 23, 23, 23, 28, 28 |
| Standard strokes * (mm) | 25, 50, 80, 100, 125, 160, 200, 250, 300, 320, 400, 500 |
| Medium | Compressed air – filtered – lubricated |
| Working pressure | 0.5 to 10 bar |
| Ambient temperature | −10° to +60°C |
| Medium temperature – Regular | +5° to +50°C |
| Medium temperature – High temperature applications** | +5° to +150°C max. |
| Materials of construction | Aluminium, Brass, Steel, Acetal, Polyurethane, Nitrile (Regular), FKM (High temperature) |
| Mountings | Basic cylinder, Foot mounting, Front flange, Rear flange, Male clevis, Male clevis (with spherical bearing), Female clevis, Female clevis (King pin), Front trunnion, Rear trunnion, Centre trunnion |
| Accessories | Clevis foot bracket, Wall mounting bracket, Trunnion bracket, Rod end fork, Rod end aligner, Rod end spherical eye |
* For non-standard or longer stroke cylinders,
contact your regional dealer or JANATICS.
** Refer Special Ordering number.
*Specifications may vary according to the selected Janatics Pneumatic Cylinder(A27 , A28)
model and
configuration. Contact Helix Solution for exact technical specifications and product
selection.
