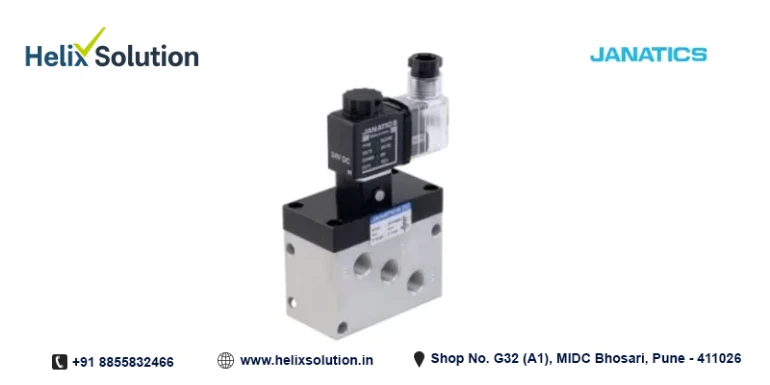

Janatics Pneumatic Actuator Valve - DP1 Series
Janatics Pneumatic Actuator Valve - DP1 Series
Technical Specifications
| Specification | 3/2 | 5/2 |
|---|---|---|
| Model | DP1 | |
| Type | 3/2 | 5/2 |
| Port size | Inlet (1), Outlet (2,4), Exhaust (3,5) – G1/4 | |
| Medium | Compressed air | |
| Ambient temperature | −10° to +60°C | |
| Medium temperature | +5° to +50°C | |
| Operating pressure range (bar) | 2 to 10 bar | |
| Orifice (NW) | 6 | |
| Flow rate @ (lpm) | 1000 | 1000 |
Electrical Specifications
| Specification | Details |
|---|---|
| Coil width | 22 mm |
| Voltage (V) ± 10% | AC (50 Hz) 24, 48, 110, 220 / DC 12, 24, 48, 110 |
| Power consumption | 6 VA / 5 W |
| Duty cycle | Continuous |
| Class of insulation | Class F |
| Type of coil protection | IP65 |
| Materials of construction | Aluminium, Brass, Stainless steel, Nitrile |
Spare Parts List – Coil (without socket)
| Ref. No. | Voltage (V) | Ordering No. – AC 50Hz | Ordering No. – DC |
|---|---|---|---|
| 1 | 220 | AC23A | Nil |
| 110 | AC23B | DC24Q | |
| 48 | AC23D | DC24S | |
| 24 | AC23G | DC24W | |
| 12 | Nil | DC24R | |
| 2 | Actuator assembly – SC3001 | ||
@ Inlet pressure 6 bar, and pressure drop 1
bar.
*Specifications may vary according to the selected Janatics model. Please confirm the
required model and configuration before ordering.
