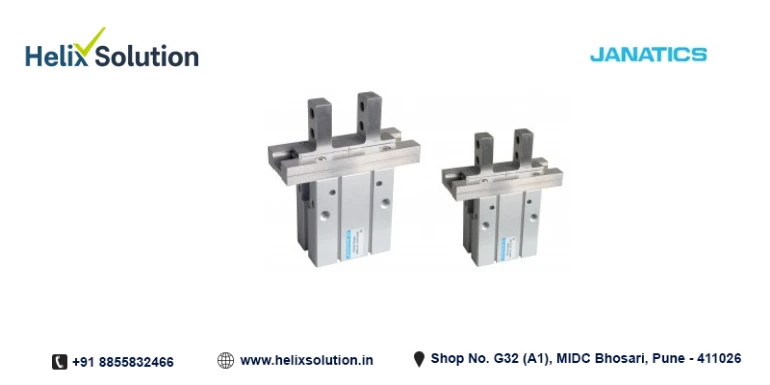

Janatics Parallel Gripper - DHPC Series
Janatics Parallel Gripper - DHPC Series
Technical Specifications
| Specification | AG1P-10 | AG1P-16 | AG1P-20 | AG1P-25 | AG1P-32 | AG1P-40 |
|---|---|---|---|---|---|---|
| Cylinder bore (mm) | Ø10 | Ø16 | Ø20 | Ø25 | Ø32 | Ø40 |
| Medium | Compressed Air – Filtered | |||||
| Type of operation | Double acting | |||||
| Working pressure (bar) | 2 to 7 | 1 to 7 | ||||
| Ambient temperature (°C) | −10° to +60°C | |||||
| Medium temperature (°C) | +5° to +50°C | |||||
| Maximum operation frequency (Cycles/min) | 100 | 60 | ||||
| Repeatability (mm) | ±0.01 | ±0.02 | ||||
| Lever open / close stroke (mm) | 4 | 6 | 10 | 14 | 22 | 30 |
| Lubrication | Non-lubricated (without moisture). If lubricated, provide continuously. | |||||
*Specifications may vary according to the selected Janatics Parallel Gripper - DHPC Series model and configuration. Contact Helix Solution for exact technical specifications and product selection.
