Janatics Miniature Cylinder (A51, A52)

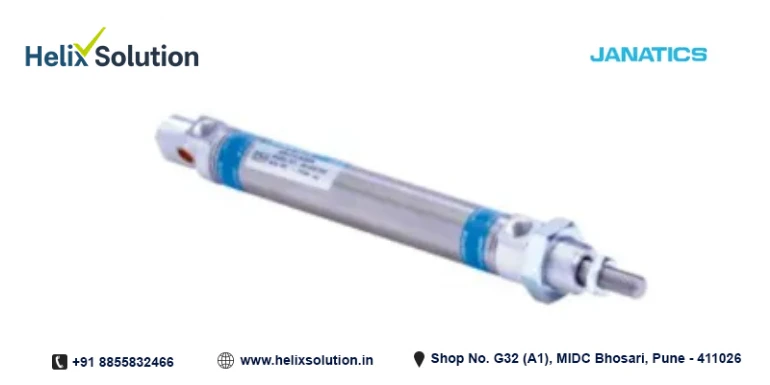

Janatics Miniature Cylinder A51, A52
Technical Specifications
| Specification | Details |
|---|---|
| Cylinder bore Ø (mm) | 12, 16, 20, 25 |
| Standard strokes* (mm) | 10, 25, 40, 50, 80, 100, 125, 160, 200, 250, 300 |
| Medium | Compressed air – filtered – lubricated |
| Working pressure | 0.5 to 10 bar |
| Ambient temperature | −10° to +60°C |
| Medium temperature | +5° to +50°C |
| Materials of construction | Aluminium, Brass, Nitrile, Polyurethane, Steel, Acetal |
| Mountings | Front foot mounting, Double foot mounting, Front flange, Rear flange, Front trunnion, Rear trunnion |
| Accessories | Clevis foot bracket, Trunnion bracket, Rod end fork, Rod end aligner |
* For non-standard or longer stroke cylinders,
contact your regional dealer or JANATICS.
*Specifications may vary according to the selected Janatics MAL Cylinder A51 or A52 model
and
configuration. Contact Helix Solution for exact technical specifications and product
selection.
