Janatics FRL (Filter Regulator Lubricator)

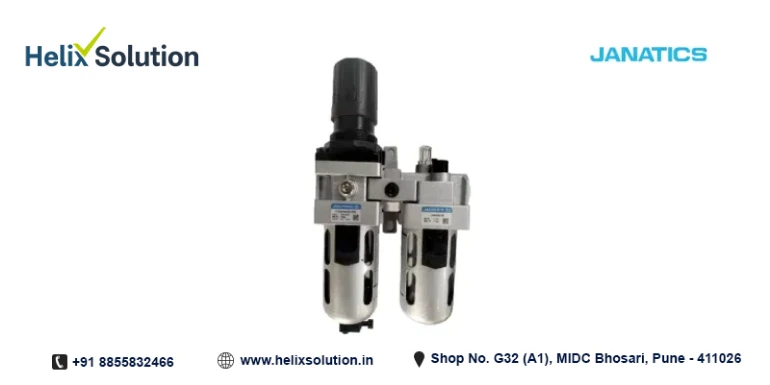

Janatics FRL Filter Regulator Lubricator
Technical Specifications
| Specification | FRCLM14...A | FRCLM15...A | FRCLM17...A | FRCLM17...A |
|---|---|---|---|---|
| Model | FRCLM14...A | FRCLM15...A | FRCLM17...A | FRCLM17...A |
| Medium | Compressed air | |||
| Port size | G3/8 | G1/2 | G3/4 | G1 |
| Pressure gauge port size | G1/8 | G1/8 | G1/4 | G1/4 |
| Flow rate @ (lts / min) | 1250 | 2800 | 3500 | 4000 |
| Operating pressure (bar) | 2 – 10 | |||
| Regulating pressure range # (bar) | 0.2 – 2, 0.2 – 4, 0.5 – 7, 0.5 – 10 (Standard) | |||
| Ambient temperature | +5° to +50°C | |||
| Medium temperature | +5° to +50°C | |||
| Filtration # (µm) | 1, 5, 25, 40 (standard), 50, 100 | |||
| Min operating flow (lts / min) | 40 | 45 | 50 | 50 |
| Bowl capacity FRC (ml) (at maximum condensate level) | 32 | 44 | 165 | 165 |
| Bowl capacity Lubricator (ml) (at maximum oil level) | 57 | 152 | 200 | 200 |
| Recommended oil | ISO VG 32 (Servo System 32) | |||
| Bowl material | Polycarbonate | |||
| Installation | Vertical (as shown in the picture) | |||
| Materials of construction | Aluminium, Bronze, Brass, Steel, Acetal, Polycarbonate, SS, Nitrile | |||
| Optional accessories * | Pressure gauge | |||
| Weight (Kg) | 1.31 | 2.49 | 4.23 | 4.12 |
@ Supply pressure 7 bar, Set pressure 6 bar,
Pressure drop Δp = 1 bar (For standard models).
# For details see “How to order”.
* For details refer optional accessories Cat No APA – 01 – C.
*Specifications may vary according to the selected Janatics FRL model. Contact Helix
Solution
for exact technical specifications and product configuration.
