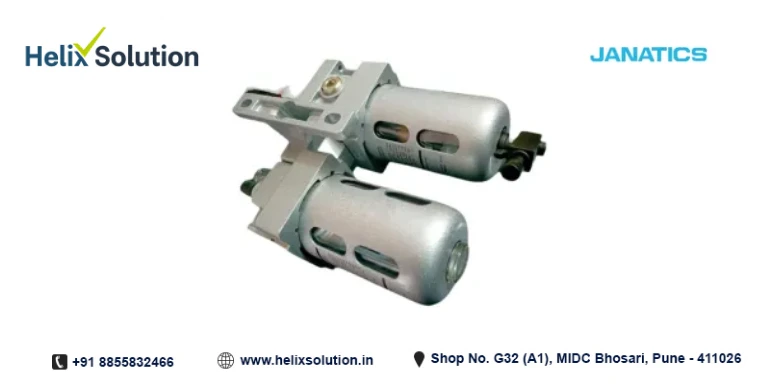

Janatics Filter Lubricator
Janatics Filter Lubricator
Technical Specifications
| Specification | L13 | L14 | L15 | L17 | L17 |
|---|---|---|---|---|---|
| Model | L13 | L14 | L15 | L17 | L17 |
| Medium | Compressed air – Filtered | ||||
| Port size | G1/4 | G3/8 | G1/2 | G3/4 | G1 |
| Flow rate (lts / min) @ | 1350 | 3000 | 5650 | 7200 | 9000 |
| Maximum supply pressure (bar) | 10 | ||||
| Ambient temperature | −10° to +50°C | ||||
| Medium temperature | +5° to +50°C | ||||
| Min operating flow (lts / min) | 12 | 40 | 45 | 50 | 50 |
| Bowl capacity (ml) (at maximum oil level) | 20 | 57 | 152 | 200 | 200 |
| Recommended oil | ISO VG 32 (Servo System 32) | ||||
| Bowl material | Polycarbonate | ||||
| Installation | Vertical (as in the picture) | ||||
| Materials of construction | Aluminium, Bronze, Steel, Acetal, Polycarbonate, SS, Nitrile | ||||
| Optional accessories * | Clamp, Modular mounting kit | ||||
| Weight (Kg) | 0.19 | 0.30 | 0.56 | 1.3 | 1.2 |
@ Supply pressure 6 bar, pressure drop Δp = 0.5 bar
(For standard models)
* For details refer optional accessories Cat No APA – 01 – C.
*Specifications may vary according to the selected Janatics model and configuration. Contact
Helix Solution for exact technical specifications and product configuration.
