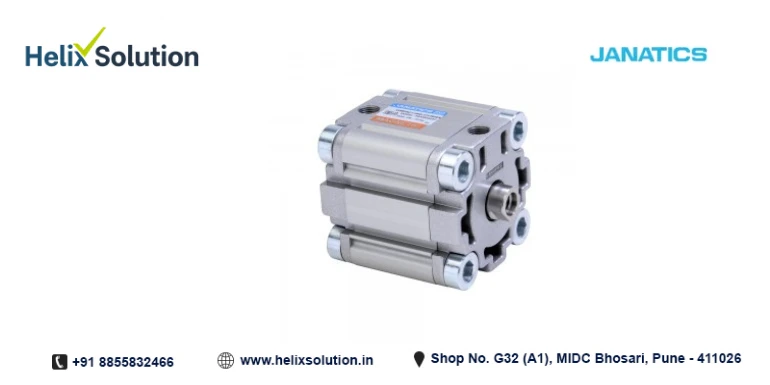

Janatics Compact ISO Cylinder (A63 , A64) (A63, A64)
Janatics Compact ISO Cylinder (A63 , A64)
Technical Specifications
| Specification | Details |
|---|---|
| Cylinder bore Ø (mm) | 25, 32, 40, 50, 63, 80, 100 |
| Standard strokes* (mm) | 5, 10, 15, 20, 25, 30, 40, 50, 60 (for Ø25) 10, 15, 20, 25, 30, 40, 50, 60, 70, 80 (for Ø32–100) |
| Medium | Compressed air – filtered – lubricated |
| Working pressure range | 0.5 to 10 bar |
| Ambient temperature | −10° to +60°C |
| Medium temperature – Regular | +5° to +50°C |
| Medium temperature – High temperature applications | −10° to +150°C |
| Materials of construction | Aluminium, Nitrile, Steel, Polyurethane / Aluminium, Steel, FKM (only applicable for high temperature series) |
| Mountings @ | Basic cylinder, Foot mounting, Front flange, Rear flange, Male clevis, Female clevis |
| Accessories # | Clevis foot bracket, Wall mounting bracket, Rod end fork, Rod end aligner, Rod end spherical eye |
* For non-standard or longer stroke cylinders,
contact your regional dealer or JANATICS.
@ Ø25 mm Female clevis not available.
# Ø25 mm Clevis foot bracket and Wall mounting bracket not available.
*Specifications may vary according to the selected Janatics A63 or A64 model and
configuration. Contact Helix Solution for exact technical specifications and product
selection.
