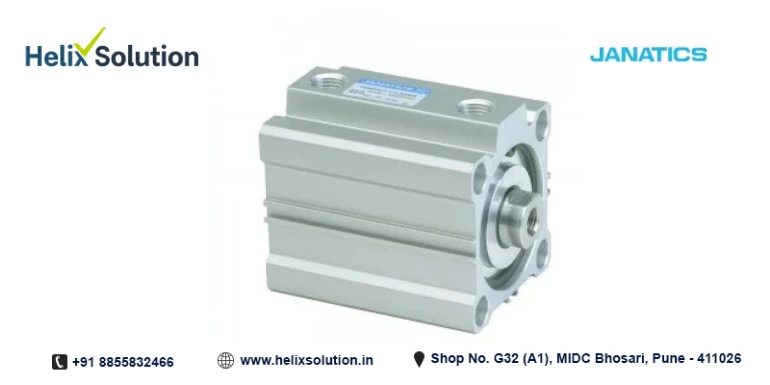

Janatics Compact Cylinderr (A02, A03)
Janatics Compact Cylinderr (A02, A03)
Technical Specifications
| Specification | Details |
|---|---|
| Cylinder bore Ø (mm) | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 |
| Standard strokes* (mm) | 5, 10, 15, 20, 25, 30, 40 (Ø12, Ø16) 5, 10, 15, 20, 25, 30, 40, 50 (Ø20, Ø25) 5, 10, 15, 20, 25, 30, 40, 50, 60 (Ø32, Ø40, ) 10, 20, 30, 40, 50, 60, 70, 80 (Ø50 , Ø63, Ø80, Ø100) |
| Medium | Compressed air – Filtered – Lubricated |
| Working pressure range | 0.5 – 10 bar |
| Ambient temperature | −10° to +60°C |
| Medium temperature | +5° to +50°C |
* For non-standard or longer stroke cylinders,
contact your regional dealer or JANATICS.
*Specifications may vary according to the selected Janatics Compact Cylinderr (A02, A03)
model and
configuration. Contact Helix Solution for exact technical specifications and product
selection.
