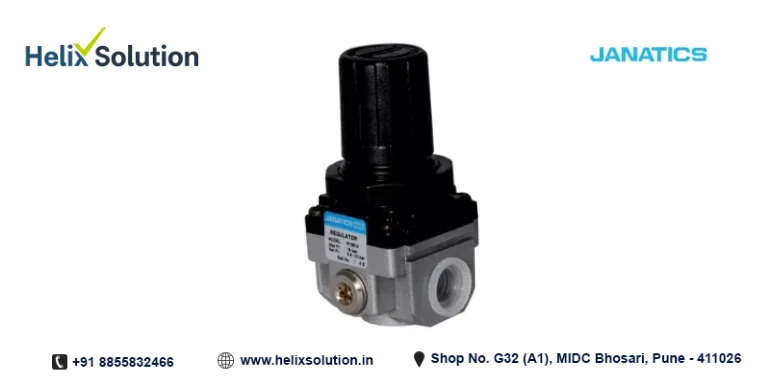

Janatics Air Regulator
Janatics Air Regulator
Technical Specifications
| Specification | R13 | R14 | R15 | R17 | R17 |
|---|---|---|---|---|---|
| Model | R13 | R14 | R15 | R17 | R17 |
| Medium | Compressed air – Filtered | ||||
| Port size | G1/4 | G3/8 | G1/2 | G3/4 | G1 |
| Pressure gauge port size | G1/8 | G1/8 | G1/8 | G1/4 | G1/4 |
| Flow rate (lts / min) @ | 600 | 2500 | 4000 | 5000 | 6000 |
| Maximum supply pressure (bar) | 15 | ||||
| Regulating pressure range # (bar) | 0.2 – 2, 0.2 – 4, 0.5 – 7, 0.5 – 10 (Standard) | ||||
| Ambient temperature | −10° to +60°C | ||||
| Medium temperature | +5° to +50°C | ||||
| Installation | Any position | ||||
| Materials of construction | Aluminium, Brass, Steel, Acetal, SS, Nitrile | ||||
| Optional accessories * | Clamp, Modular mounting kit, Pressure gauge | ||||
| Weight (Kg) | 0.15 | 0.40 | 0.90 | 1.4 | 1.3 |
@ Supply pressure 7 bar, Set pressure 6 bar,
pressure drop Δp = 1 bar (For standard models).
# For details see “How to order”.
* For details refer Optional accessories Cat No APA – 01 – C.
*Specifications may vary according to the selected Janatics model. Contact Helix Solution
for
exact technical specifications and product configuration.
