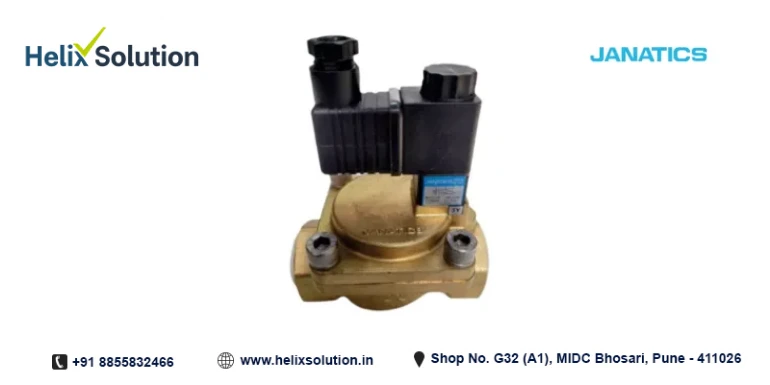

Janatics Air Pneumatic Steam Valve - DMN Series
Technical Specifications
|
Specification |
DMN227A61 |
DMN227A62 |
DMN227A63 |
DMN229A64 |
DMN229A65 |
|---|---|---|---|---|---|
|
Ordering No. |
DMN227A61 |
DMN227A62 |
DMN227A63 |
DMN229A64 |
DMN229A65 |
|
Port Size |
G1/4 |
G3/8 |
G1/2 |
G3/4 |
G1 |
|
Type |
2/2 |
||||
|
Design |
Diaphragm type |
||||
|
Medium |
Air, Water, Inert Gas - Compressed air, filtered, lubricated |
||||
|
Operating pressure |
0.5 to 10 bar |
||||
|
Ambient temperature |
-10° to +60° C |
||||
|
Medium temperature |
+5° to +50° C |
||||
|
Actuation type |
Electrical |
||||
|
Type of pilot control |
Piloted |
||||
|
Type of mounting |
In-line installation |
||||
|
Mounting position |
Any |
||||
|
Nominal size |
mm |
13 |
13 |
13 |
25 |
|
Standard nominal flow rate |
lts/min |
1600 |
3600 |
4000 |
10800 |
|
Maximum tightening torque |
N.m |
14 |
24 |
30 |
40 |
|
Weight |
kg |
0.565 |
0.540 |
0.515 |
1.34 |
|
Materials of construction |
Housing, Top cover: Brass, Diaphragm: Nitrile |
||||
|
Electrical |
|||||
|
Coil width |
22 mm |
||||
|
Voltage (V) ± 10% |
AC ( 50 Hz ) - 24, 48, 110, 220 |
||||
|
DC - 12, 24, 48, 110 |
|||||
|
Power consumption |
AC - 6 VA, DC - 5 W |
||||
|
Duty cycle |
Continuous |
||||
|
Class of insulation |
Class F |
||||
|
Type of coil protection |
IP65 |
||||
Note: For water application
- It is recommended to keep the solenoid valve in vertical position.
- Do not remove the mesh provided in inlet port side.
- Use of filter in the inlet side is highly recommended.
- Use of soft water or water softener in the inlet side is highly recommended.
