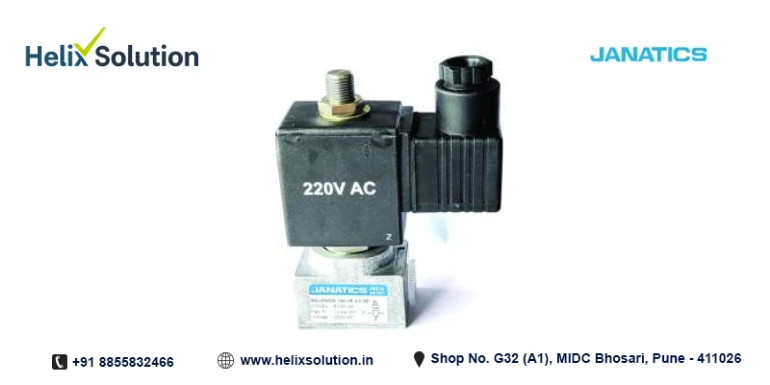

3/2 Direct Acting Normally Closed Valve (With Manual Operator)
Features
- Wide range of coil voltages
- Continuous duty cycle
- Low temperature of operation
- Noiseless performance
- Coil can be rotated by 360°
- Manual operator (Screw & Knob type)
Technical Specifications
| Specification | E24613 | E24612 | E24611 |
|---|---|---|---|
| Port size | Inlet, Outlet – G1/4, Exhaust – G1/8 | ||
| Medium | Filtered compressed air | ||
| Ambient temperature | −10° to +60°C | ||
| Medium temperature | +5° to +50°C | ||
| Orifice (NW) | 2.5 | 2 | 1.2 |
| Operating pressure (bar) | 0 – 7 | 0 – 10 | 0 – 20 |
| Flow rate (lpm) * | 180 | 140 | 60 |
Electrical Specifications
| Specification | Details |
|---|---|
| Coil width | 32 mm |
| Voltage (V) ± 10% – AC (50 Hz) | 24, 48, 110, 220 |
| Voltage (V) ± 10% – DC | 12, 24, 48, 110 |
| Power consumption (Watts) | 6 (E24613), 9 (E24612), 8 (E24611) |
| Duty cycle | Continuous |
| Type of coil protection | IP65 |
| Class of insulation | Class F |
| Materials of construction | Aluminium, Brass, Stainless steel, Nitrile |
Spare Parts List
| Ref. No. | Voltage (V) | Ordering no. – AC 50Hz | Ordering no. – DC |
|---|---|---|---|
| 1 – Coil (without socket) | 220 | AC11A | – NA – |
| 110 | AC11B | DC12Q | |
| 48 | AC11D | DC12S | |
| 24 | AC11G | DC12W | |
| 12 | – NA – | DC15R | |
| 2 – Moving core sub assembly complete | SSA0311-H (AC 50Hz) / SSA0711-H (DC) | ||
* At 6 bar inlet, 5 bar outlet, with pressure drop
Δp = 1 bar.
# For ordering refer page no. 3.1.1.
Caution: A.C coil should not be used on a D.C coil valve, and vice versa.
