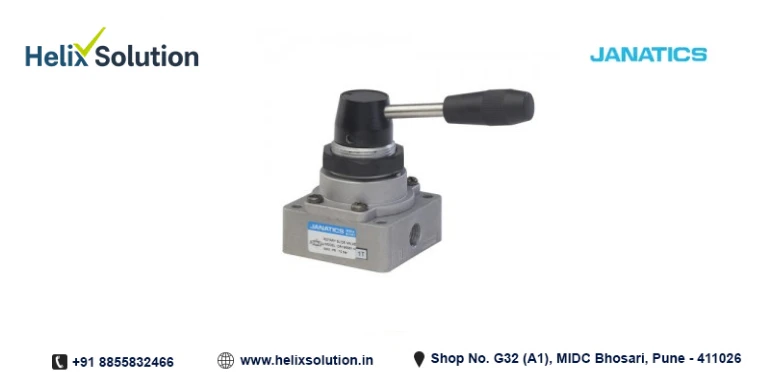

Technical Specifications – DR19 (G1/2)
| Specification |
DR19 |
| Model |
DR19 |
| Port size |
G1/2 |
| Medium |
Compressed air filtered, lubricated |
| Maximum working pressure (bar) |
10 |
| Recommended oil for lubrication |
ISO VG32 (Servo system 32) |
| Operating Angle |
45° (Refer Fig. 1 & 2) |
| Ambient temperature (°C) |
−10° to +60° |
| Medium temperature (°C) |
+5° to +50° |
| Flow @ (1 ➔ 2, 1 ➔ 4) lts/min |
4000 |
| Materials of construction |
Aluminium, Steel, Stainless Steel, Nitrile Rubber, Brass |
| Weight (Kg) |
0.9 |
Ordering Data – DR19
| Ordering no. |
DR197S63-N & DR197S63-T |
| Type |
4/3 – Hand Lever Operated (Mid-Position Blocked) |
| Symbol |
4/3 – Mid-Position Blocked (refer Fig. 1) |
Technical Specifications – DR11 (G1/4)
| Specification |
DR11 |
| Model |
DR11 |
| Port size |
G1/4 |
| Medium |
Compressed air filtered, lubricated |
| Maximum working pressure (bar) |
10 |
| Recommended oil for lubrication |
ISO VG32 (Servo system 32) |
| Operating Angle |
45° (Refer Fig. 1 & 2) |
| Ambient temperature (°C) |
−10° to +60° |
| Medium temperature (°C) |
+5° to +50° |
| Flow @ (1 ➔ 2, 1 ➔ 4) lts/min |
1000 (DR195S61) / 1100 (DR115S61) |
| Materials of construction |
Aluminium, Steel, Stainless Steel, Nitrile Rubber, Brass |
| Weight (Kg) |
0.3 |
Ordering Data – DR11
| Ordering no. |
DR195S61-N & DR195S61-T |
DR115S61-N & DR115S61-T |
| Type |
4/3 – Hand Lever Operated (Mid-Position Blocked) |
4/3 – Hand Lever Operated (Mid-Position Exhausted) |
| Symbol |
4/3 – Mid-Position Blocked (refer Fig. 1) |
4/3 – Mid-Position Exhausted (refer Fig. 2) |
@ Inlet pressure 6 bar, and pressure drop 1
bar.
N – Handle position Inlet port side, T – Handle position Outlet port side.
*Specifications may vary according to the selected Janatics model. Please confirm the
required model and configuration before ordering.
