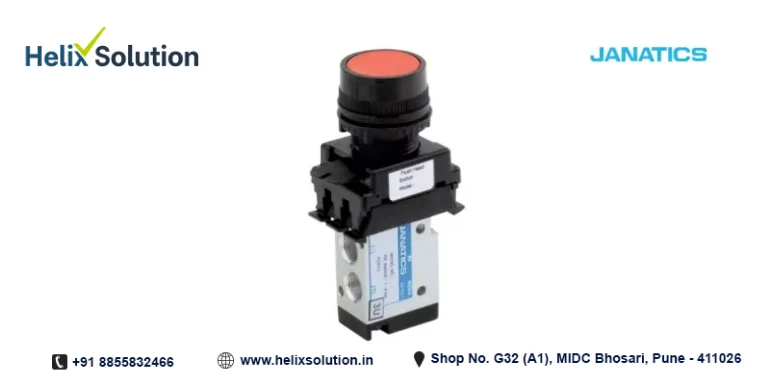

Janatics Air Pneumatic Mechanical Push Button Valve - DP2
DS2
Series
Janatics Air Pneumatic Mechanical Push Button Valve - DP2,DS2 Series
Technical Specifications
| Specification | Details |
|---|---|
| Model | DS2 |
| Port Size | 1/8" |
| Type | 3/2 & 5/2 |
| Design | Spool type |
| Port size | Inlet, Outlet, Exhaust – G1/8 |
| Medium | Compressed air – Dry, filtered, lubricated |
| Working pressure range | 1 to 8 bar |
| Panel board thickness | 1 to 4 mm |
| Recommended oil for lubrication | ISO VG32 (Servo system 32) |
| Ambient temperature | −10° to +60°C |
| Medium temperature | +5° to +50°C |
| Flow @ | 450 lts/min |
| Materials of construction | Aluminium, Nitrile, Engineering plastics |
Technical Specifications
|
Specification |
Details |
|---|---|
|
Model |
DP2 |
|
Port size |
M5 |
|
Ambient temperature |
-10° to +60° C |
|
Medium temperature |
+5° to +50° C |
|
Maximum working pressure |
8 bar |
|
Stroke |
2.5 mm |
|
Medium |
Compressed air, Filtered, Lubricated |
|
Flow @ (1 → 2) |
130 lpm |
|
Materials of construction |
Housing : Aluminium, Seals : Nitrile |
@ Inlet pressure 6 bar, and pressure drop 1 bar
Mounting Hole Details
| Parameter | Value |
|---|---|
| Mounting hole dia | Ø22.5 mm |
| Panel board thickness | 1 to 4 mm |
@ Inlet pressure 6 bar, and pressure drop 1
bar.
*Specifications may vary according to the selected Janatics model. Please confirm the
required model and configuration before ordering.
