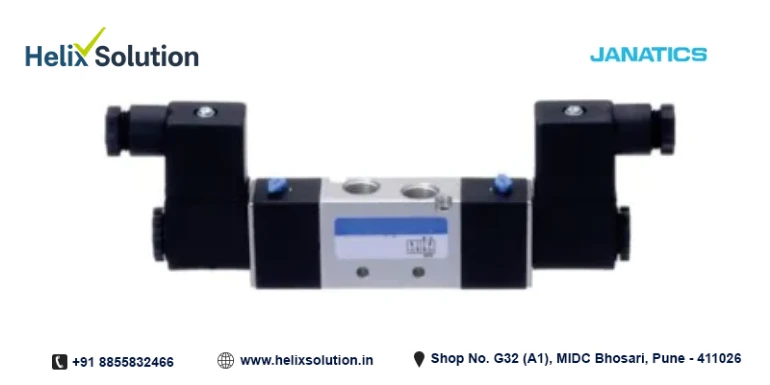

Janatics Air Pneumatic Double Solenoid Valve - DS2 Series
Janatics Air Pneumatic Double Solenoid Valve - DS2 Series
Technical Specifications
| Specification | Details |
|---|---|
| Model | DS2 |
| Type | 3/2, 5/2, 5/3 |
| Design | Spool type |
| Port Size | Inlet, Outlet, Exhaust – G1/8, External pilot – M5 |
| Medium | Compressed air – Dry, filtered, lubricated |
| Working Pressure range | 2 to 8 bar |
| External pilot pressure (ER model) | 2 to 4 bar |
| Recommended oil for lubrication | ISO VG32 (Servo system 32) |
| Ambient temperature | −10° to +60°C |
| Medium temperature | +5° to +50°C |
| Flow @ | 450 lts/min |
| Materials of construction | Aluminium, Nitrile, Brass, Acetal, PBT, Zinc, SS, Nylon, Polyamide |
Electrical Specifications
| Specification | Details |
|---|---|
| Coil width | 17 mm |
| Voltage (V) ± 10% – AC (50 Hz) | 24, 48, 110, 220 |
| Voltage (V) ± 10% – DC | 12, 24, 48, 110 |
| Power consumption | AC – 3.6 VA, DC – 2.5 W |
| Duty cycle | Continuous |
| Class of insulation | Class F |
| Type of coil protection | IP65 |
@ Inlet pressure 6 bar, and pressure drop 1
bar.
*Specifications may vary according to the selected Janatics model. Please confirm the
required model and configuration before ordering.
