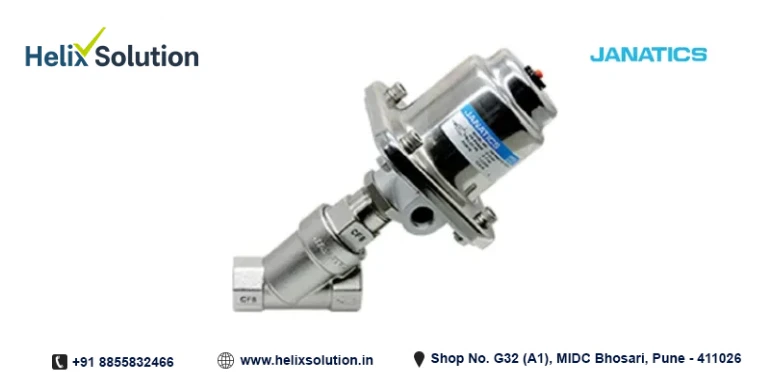

Janatics Air Pneumatic Angle Valve - DY2 Series
Janatics Air Pneumatic Angle Valve - DY2 Series
Technical Specifications
| Specification | Details |
|---|---|
| Model | DY2 |
| Type | 2/2 Normally Closed |
| Design | Poppet type |
| Port size | Inlet, Outlet – G1/2, External pilot – G1/4 Inlet, Outlet – G3/4, External pilot – G1/4 |
| Medium | Air, Water, Hot Water, Steam, Inert Gases (For any other Medium contact Head office) |
| Orifice (NW) | 16 |
| Working Pressure range | 0 to 10 bar (G1/2) / 0 to 16 bar (G3/4) |
| External pilot pressure | 3 to 7 bar |
| Recommended oil for lubrication | ISO VG32 (Servo system 32) |
| Ambient temperature | −10° to 80°C |
| Medium temperature | Refer page no. – 2.25.3 |
| Flow @ (lpm) | 8000 lts/min |
Materials of Construction
| Component | Material |
|---|---|
| Housing | Brass, SS304, SS316 |
| Seals | NBR, FKM, EPDM, Silicone, PTFE |
| Other parts | Brass, Aluminium, SS304, PA6, PA66, Spring steel |
@ Inlet pressure 6 bar, and pressure drop 1
bar.
*Specifications may vary according to the selected Janatics model. Please confirm the
required model and configuration before ordering.
