Festo DNC Cylinder

Festo Guided Cylinders DFM/DFM-B

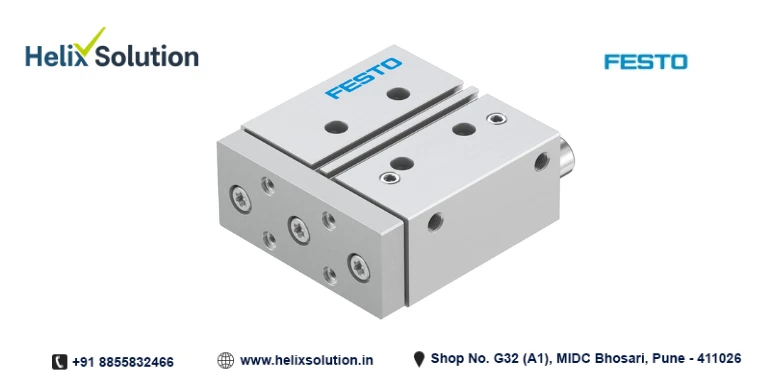

Festo DNC Cylinder - Guided Drives DFM/DFM-B

Technical Specifications – Guided Drives DFM/DFM-B

The guided drive combines the drive and guide in a single housing. It offers minimal space requirement, minimal mounting time, a choice of supply ports, high resistance to torsion and lateral forces, high rigidity, and is maintenance-free. Available with plain-bearing guide (GF) or recirculating ball bearing guide (KF).

Key Features

  • Drive and guide in a single housing
  • Minimal space requirement and minimal mounting time
  • Choice of supply ports and wide range of mounting options
  • High resistance to torsion, high rigidity
  • Maintenance-free
  • Plain-bearing guide GF: high rigidity thanks to large-diameter guide rods and four plain-bearing bushes
  • Recirculating ball bearing guide KF: for movements involving torque loads
  • DFM: basic drive with strokes up to 200 mm
  • DFM-B: drive with strokes up to 400 mm, with precision end-position adjustment, pneumatic cushioning PPV, or self-adjusting shock absorber YSRW

General Technical Data – Guided Drive DFM

Specification Ø 6 Ø 10 Ø 12 Ø 16 Ø 20 Ø 25 Ø 32 Ø 40 Ø 50 Ø 63 Ø 80 Ø 100
Pneumatic connection M3 M3 M5 M5 M5 G1/8 G1/8 G1/8 G1/4 G1/4 G3/8 G3/8
Design Piston / Piston rod / Guide rods with yoke
Cushioning (standard) Elastic cushioning rings/plates at both ends
Position sensing Via proximity switch
Type of mounting With through-hole / With female thread
Mounting position Any
Protection against rotation/guide Guide rods with yoke / plain-bearing or ball bearing guide

Operating and Environmental Conditions – DFM

Specification Ø 6 Ø 10 Ø 12 Ø 16 Ø 20 Ø 25 Ø 32 ... 100
Operating pressure [MPa] 0.2 ... 0.8 0.15 ... 0.8 0.2 ... 1 0.15 ... 1 0.1 ... 1 0.05 ... 1
Operating pressure [bar] 2 ... 8 1.5 ... 8 2 ... 10 1.5 ... 10 1 ... 10 0.5 ... 10
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating/pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
Ambient temperature – DFM-...-GF –10 ... +60°C –10 ... +60°C –20 ... +80°C
Ambient temperature – DFM-...-KF – – –5 ... +60°C
Corrosion resistance class CRC 1 – Low corrosion stress
Cleanroom class 6 according to ISO 14644-1

Forces and Impact Energy – DFM

Specification Ø 6 Ø 10 Ø 12 Ø 16 Ø 20 Ø 25 Ø 32 Ø 40 Ø 50 Ø 63 Ø 80 Ø 100
Theoretical force at 6 bar, advancing [N] 17 47 68 121 188 295 482 754 1178 1870 3016 4712
Theoretical force at 6 bar, retracting [N] 13 40 51 90 141 247 415 686 1057 1750 2827 4418
Max. impact energy in end positions [J] 0.012 0.035 0.07 0.15 0.20 0.30 0.40 0.70 1.00 1.30 0.75 1.00

General Technical Data – Guided Drive DFM-B

Specification Ø 12 Ø 16 Ø 20 Ø 25 Ø 32 Ø 40 Ø 50 Ø 63
Pneumatic connection M5 M5 M5 G1/8 G1/8 G1/8 G1/4 G1/4
Design Piston / Piston rod / Guide rods with yoke
Cushioning DFM-...-P Elastic cushioning rings/plates at both ends
Cushioning DFM-...-PPV – Pneumatic cushioning adjustable at both ends
Cushioning DFM-...-YSRW – Self-adjusting at both ends (shock absorber, progressive)
Cushioning length PPV [mm] – 12 15 15 16 17 19 19
Position sensing Via proximity switch
Type of mounting With through-hole / With female thread
Mounting position Any
Protection against rotation/guide Guide rod with yoke / plain-bearing or recirculating ball bearing guide
Variant AJ – setting range [mm] 0 ... 10
Variant EJ and YSRW – setting range [mm] – – 0 ... 10
Variant YSRW with shock absorber – repetition accuracy [mm] – – Max. 0.05

Operating and Environmental Conditions – DFM-B

Specification Ø 12 Ø 16 Ø 20 Ø 25 Ø 32 Ø 40 Ø 50 Ø 63
Operating pressure [MPa] 0.2 ... 1 0.15 ... 1 0.1 ... 1
Operating pressure [bar] 2 ... 10 1.5 ... 10 1 ... 10
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating/pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
Ambient temperature – DFM-...-GF –20 ... +80°C
Ambient temperature – DFM-...-KF –5 ... +60°C
Ambient temperature – DFM-...-YSRW 0 ... +60°C
Ambient temperature – DFM-...-S6 0 ... +120°C
Corrosion resistance class CRC – GF / S6 2 – Moderate corrosion stress
Cleanroom class – 6 according to ISO 14644-1

Forces and Impact Energy – DFM-B

Specification Ø 12 Ø 16 Ø 20 Ø 25 Ø 32 Ø 40 Ø 50 Ø 63
Theoretical force at 6 bar, advancing [N] 68 121 188 295 482 754 1178 1870
Theoretical force at 6 bar, retracting [N] 51 90 141 247 415 686 1057 1750
Max. impact energy in end positions – Cushioning P [J] 0.09 0.15 0.2 0.35 0.40 0.7 1.0 1.3
Max. impact energy in end positions – S6 [J] 0.035 0.075 0.1 0.15 0.2 0.35 0.5 0.65
Max. energy absorption per stroke – YSRW [J] – – 4 8 12 35 35 70
Max. energy absorption per hour – YSRW [J] – – 21000 30000 41000 68000 68000 100000

Maximum Speeds – DFM

Specification Ø 6 Ø 10 Ø 12 Ø 16 Ø 20 Ø 25 Ø 32 Ø 40 Ø 50 Ø 63 Ø 80 Ø 100
Max. speed advancing – Cushioning P [m/s] 1.3 1.7 0.8 0.8 0.8 0.8 0.8 0.8 0.6 0.6 0.4 0.4
Max. speed retracting – Cushioning P [m/s] 1.1 1.6 0.8 0.8 0.8 0.8 0.8 0.8 0.6 0.6 0.4 0.4

Maximum Speeds – DFM-B

Specification Ø 12 Ø 16 Ø 20 Ø 25 Ø 32 Ø 40 Ø 50 Ø 63
Cushioning P, precision stroke adjustment AJ/EJ – max. speed [m/s] 0.8 0.8 0.8 0.8 0.8 0.8 0.6 0.6
Cushioning P, GF with S6 – max. speed [m/s] 0.5 0.5 0.5 0.5 0.5 0.5 0.4 0.4
Cushioning PPV, YSRW, PPV S6 – max. speed [m/s] – 1.5 1.5 1.5 1.5 1.5 1 1

Torsional Backlash

Specification Ø 6 Ø 10 Ø 12 Ø 16 Ø 20 Ø 25 Ø 32 Ø 40 Ø 50 Ø 63 Ø 80 Ø 100
Average torsional backlash – GF [°] ±0.1 ±0.1 ±0.06 ±0.06 ±0.05 ±0.04 ±0.04 ±0.03 ±0.03 ±0.02 ±0.03 ±0.03
Torsional backlash – KF [°] – – ±0.03 ±0.02 ±0.02 ±0.02 ±0.01 ±0.01 ±0.02 ±0.02 ±0.03 ±0.03

Materials

Component Ø 6, 10 Ø 12 ... 100
Yoke plate Aluminium Tempered steel
Housing Anodised wrought aluminium alloy
Piston rod High-alloy stainless steel
Guide rods – DFM-...-GF High-alloy stainless steel
Guide rods – DFM-...-KF Quenched and tempered steel, hard-chrome plated
Static seals Nitrile rubber
Dynamic seals Polyurethane, HNBR Polyurethane
Note on materials RoHS-compliant; LABS (PWIS) conformity: VDMA24364-B1/B2-L
DFM-...-F1A Suitable for battery production with reduced Cu/Zn/Ni values (F1a)

Type Code – DFM

Position Code Description
001 Series DFM Guided drive, double-acting
002 Piston diameter [mm] 6 / 10 / 12 / 16 / 20 / 25 / 32 / 40 / 50 / 63 / 80 / 100 Piston diameter
003 Stroke range [mm] 10 ... 400 Stroke length
004 Generation Standard / B – / Function-optimised
005 Cushioning P / PPV / YSRW Elastic cushioning rings/plates both sides / Pneumatic cushioning adjustable both ends / Shock absorber self-adjusting progressive
006 Position sensing A For proximity sensor
007 Guide GF / KF Plain bearing / Recirculating ball bearing guide
008 Special material properties None / F1A – / Recommended for Li-ion battery production
009 Temperature range Standard / S6 – / Heat-resistant seals max. 120 °C
010 Precision adjustment extended None / AJ – / Precision adjustment in the end positions, advancing
011 Explosion prevention and protection None / EX3 – / II 2G in accordance with EU Explosion Protection Directive
012 Precision adjustment retracting None / EJ – / Precision adjustment in the end positions, retracting
013 Slot cover, sensor slot None / ...S – / 1 ... 10 pieces
014 Proximity switch, with cable, 2.5 m None / ...G – / 1 ... 10 pieces
015 Proximity switch, contactless, with cable, 2.5 m None / ...I – / 1 ... 10 pieces

Ordering Data – DFM with Plain-Bearing Guide GF (Cushioning P)

Stroke [mm] Ø 6 mm – Part no. / Type Ø 10 mm – Part no. / Type Ø 12 mm – Part no. / Type Ø 16 mm – Part no. / Type Ø 20 mm – Part no. / Type Ø 25 mm – Part no. / Type
5 4149944 / DFM-6-5-P-A-GF 4154768 / DFM-10-5-P-A-GF – – – –
10 4149945 / DFM-6-10-P-A-GF 4154769 / DFM-10-10-P-A-GF 170824 / DFM-12-10-P-A-GF 170832 / DFM-16-10-P-A-GF – –
15 4149946 / DFM-6-15-P-A-GF 4154770 / DFM-10-15-P-A-GF – – – –
20 4149947 / DFM-6-20-P-A-GF 4154799 / DFM-10-20-P-A-GF 170825 / DFM-12-20-P-A-GF 170833 / DFM-16-20-P-A-GF 170840 / DFM-20-20-P-A-GF 170847 / DFM-25-20-P-A-GF
25 – – 170826 / DFM-12-25-P-A-GF 170834 / DFM-16-25-P-A-GF 170841 / DFM-20-25-P-A-GF 170848 / DFM-25-25-P-A-GF
30 – – 170827 / DFM-12-30-P-A-GF 170835 / DFM-16-30-P-A-GF 170842 / DFM-20-30-P-A-GF 170849 / DFM-25-30-P-A-GF
40 – – 170828 / DFM-12-40-P-A-GF 170836 / DFM-16-40-P-A-GF 170843 / DFM-20-40-P-A-GF 170850 / DFM-25-40-P-A-GF
50 – – 170829 / DFM-12-50-P-A-GF 170837 / DFM-16-50-P-A-GF 170844 / DFM-20-50-P-A-GF 170851 / DFM-25-50-P-A-GF
80 – – 170830 / DFM-12-80-P-A-GF 170838 / DFM-16-80-P-A-GF 170845 / DFM-20-80-P-A-GF 170852 / DFM-25-80-P-A-GF
100 – – 170831 / DFM-12-100-P-A-GF 170839 / DFM-16-100-P-A-GF 170846 / DFM-20-100-P-A-GF 170853 / DFM-25-100-P-A-GF

Ordering Data – DFM with Plain-Bearing Guide GF (Continued)

Stroke [mm] Ø 32 mm – Part no. / Type Ø 40 mm – Part no. / Type Ø 50 mm – Part no. / Type Ø 63 mm – Part no. / Type Ø 80 mm – Part no. / Type Ø 100 mm – Part no. / Type
20 170854 / DFM-32-20-P-A-GF – – – – –
25 170855 / DFM-32-25-P-A-GF 170864 / DFM-40-25-P-A-GF 170871 / DFM-50-25-P-A-GF 170878 / DFM-63-25-P-A-GF 170885 / DFM-80-25-P-A-GF 170892 / DFM-100-25-P-A-GF
30 170856 / DFM-32-30-P-A-GF – – – – –
40 170857 / DFM-32-40-P-A-GF – – – – –
50 170858 / DFM-32-50-P-A-GF 170865 / DFM-40-50-P-A-GF 170872 / DFM-50-50-P-A-GF 170879 / DFM-63-50-P-A-GF 170886 / DFM-80-50-P-A-GF 170893 / DFM-100-50-P-A-GF
80 170859 / DFM-32-80-P-A-GF 170866 / DFM-40-80-P-A-GF 170873 / DFM-50-80-P-A-GF 170880 / DFM-63-80-P-A-GF 170887 / DFM-80-80-P-A-GF 170894 / DFM-100-80-P-A-GF
100 170860 / DFM-32-100-P-A-GF 170867 / DFM-40-100-P-A-GF 170874 / DFM-50-100-P-A-GF 170881 / DFM-63-100-P-A-GF 170888 / DFM-80-100-P-A-GF 170895 / DFM-100-100-P-A-GF
125 170861 / DFM-32-125-P-A-GF 170868 / DFM-40-125-P-A-GF 170875 / DFM-50-125-P-A-GF 170882 / DFM-63-125-P-A-GF 170889 / DFM-80-125-P-A-GF 170896 / DFM-100-125-P-A-GF
160 170862 / DFM-32-160-P-A-GF 170869 / DFM-40-160-P-A-GF 170876 / DFM-50-160-P-A-GF 170883 / DFM-63-160-P-A-GF 170890 / DFM-80-160-P-A-GF 170897 / DFM-100-160-P-A-GF
200 170863 / DFM-32-200-P-A-GF 170870 / DFM-40-200-P-A-GF 170877 / DFM-50-200-P-A-GF 170884 / DFM-63-200-P-A-GF 170891 / DFM-80-200-P-A-GF 170898 / DFM-100-200-P-A-GF

Ordering Data – DFM with Recirculating Ball Bearing Guide KF (Cushioning P)

Stroke [mm] Ø 12 mm – Part no. / Type Ø 16 mm – Part no. / Type Ø 20 mm – Part no. / Type Ø 25 mm – Part no. / Type Ø 32 mm – Part no. / Type Ø 40 mm – Part no. / Type
10 170899 / DFM-12-10-P-A-KF 170907 / DFM-16-10-P-A-KF – – – –
20 170900 / DFM-12-20-P-A-KF 170908 / DFM-16-20-P-A-KF 170915 / DFM-20-20-P-A-KF 170922 / DFM-25-20-P-A-KF 170929 / DFM-32-20-P-A-KF –
25 170901 / DFM-12-25-P-A-KF 170909 / DFM-16-25-P-A-KF 170916 / DFM-20-25-P-A-KF 170923 / DFM-25-25-P-A-KF 170930 / DFM-32-25-P-A-KF 170939 / DFM-40-25-P-A-KF
30 170902 / DFM-12-30-P-A-KF 170910 / DFM-16-30-P-A-KF 170917 / DFM-20-30-P-A-KF 170924 / DFM-25-30-P-A-KF 170931 / DFM-32-30-P-A-KF –
40 170903 / DFM-12-40-P-A-KF 170911 / DFM-16-40-P-A-KF 170918 / DFM-20-40-P-A-KF 170925 / DFM-25-40-P-A-KF 170932 / DFM-32-40-P-A-KF –
50 170904 / DFM-12-50-P-A-KF 170912 / DFM-16-50-P-A-KF 170919 / DFM-20-50-P-A-KF 170926 / DFM-25-50-P-A-KF 170933 / DFM-32-50-P-A-KF 170940 / DFM-40-50-P-A-KF
80 170905 / DFM-12-80-P-A-KF 170913 / DFM-16-80-P-A-KF 170920 / DFM-20-80-P-A-KF 170927 / DFM-25-80-P-A-KF 170934 / DFM-32-80-P-A-KF 170941 / DFM-40-80-P-A-KF
100 170906 / DFM-12-100-P-A-KF 170914 / DFM-16-100-P-A-KF 170921 / DFM-20-100-P-A-KF 170928 / DFM-25-100-P-A-KF 170935 / DFM-32-100-P-A-KF 170942 / DFM-40-100-P-A-KF

Ordering Data – DFM-B with Plain-Bearing Guide GF (Cushioning PPV)

Stroke [mm] Ø 16 mm – Part no. / Type Ø 20 mm – Part no. / Type Ø 25 mm – Part no. / Type Ø 32 mm – Part no. / Type Ø 40 mm – Part no. / Type Ø 50 mm – Part no. / Type
10 8165512 / DFM-16-10-B-PPV-A-GF – – – – –
20 8162429 / DFM-16-20-B-PPV-A-GF 8161411 / DFM-20-20-B-PPV-A-GF 8161420 / DFM-25-20-B-PPV-A-GF 8161431 / DFM-32-20-B-PPV-A-GF – –
25 8162430 / DFM-16-25-B-PPV-A-GF 8161412 / DFM-20-25-B-PPV-A-GF 8161421 / DFM-25-25-B-PPV-A-GF 562063 / DFM-32-25-B-PPV-A-GF 8161440 / DFM-40-25-B-PPV-A-GF 8165515 / DFM-50-25-B-PPV-A-GF
30 8162431 / DFM-16-30-B-PPV-A-GF 8161413 / DFM-20-30-B-PPV-A-GF 8161423 / DFM-25-30-B-PPV-A-GF 8161434 / DFM-32-30-B-PPV-A-GF – –
40 8162432 / DFM-16-40-B-PPV-A-GF 8161414 / DFM-20-40-B-PPV-A-GF 8161424 / DFM-25-40-B-PPV-A-GF 8161436 / DFM-32-40-B-PPV-A-GF – –
50 8162433 / DFM-16-50-B-PPV-A-GF 8161415 / DFM-20-50-B-PPV-A-GF 8161425 / DFM-25-50-B-PPV-A-GF 595430 / DFM-32-50-B-PPV-A-GF 595646 / DFM-40-50-B-PPV-A-GF 588730 / DFM-50-50-B-PPV-A-GF
80 8162434 / DFM-16-80-B-PPV-A-GF 8161416 / DFM-20-80-B-PPV-A-GF 8161426 / DFM-25-80-B-PPV-A-GF 578877 / DFM-32-80-B-PPV-A-GF 8161443 / DFM-40-80-B-PPV-A-GF 609206 / DFM-50-80-B-PPV-A-GF
100 604968 / DFM-16-100-B-PPV-A-GF 8161417 / DFM-20-100-B-PPV-A-GF 578876 / DFM-25-100-B-PPV-A-GF 578878 / DFM-32-100-B-PPV-A-GF 8161445 / DFM-40-100-B-PPV-A-GF 593601 / DFM-50-100-B-PPV-A-GF
125 8162435 / DFM-16-125-B-PPV-A-GF 8161418 / DFM-20-125-B-PPV-A-GF 8161428 / DFM-25-125-B-PPV-A-GF 578879 / DFM-32-125-B-PPV-A-GF 8161446 / DFM-40-125-B-PPV-A-GF –
160 – 609167 / DFM-20-160-B-PPV-A-GF 588785 / DFM-25-160-B-PPV-A-GF 578880 / DFM-32-160-B-PPV-A-GF – –
200 – 8161419 / DFM-20-200-B-PPV-A-GF 8165513 / DFM-25-200-B-PPV-A-GF 604969 / DFM-32-200-B-PPV-A-GF – –
250 – – – 578881 / DFM-32-250-B-PPV-A-GF – –

Ordering Data – DFM-B with Recirculating Ball Bearing Guide KF (Cushioning PPV)

Stroke [mm] Ø 16 mm – Part no. / Type Ø 20 mm – Part no. / Type Ø 25 mm – Part no. / Type Ø 32 mm – Part no. / Type Ø 40 mm – Part no. / Type Ø 50 mm – Part no. / Type
10 609346 / DFM-16-10-B-PPV-A-KF – – – – –
20 609345 / DFM-16-20-B-PPV-A-KF 609349 / DFM-20-20-B-PPV-A-KF 609351 / DFM-25-20-B-PPV-A-KF 8161432 / DFM-32-20-B-PPV-A-KF – –
25 559460 / DFM-16-25-B-PPV-A-KF 559477 / DFM-20-25-B-PPV-A-KF 8161422 / DFM-25-25-B-PPV-A-KF 8161433 / DFM-32-25-B-PPV-A-KF 8161441 / DFM-40-25-B-PPV-A-KF 8161448 / DFM-50-25-B-PPV-A-KF
30 609347 / DFM-16-30-B-PPV-A-KF 609348 / DFM-20-30-B-PPV-A-KF 578921 / DFM-25-30-B-PPV-A-KF 8161435 / DFM-32-30-B-PPV-A-KF – –
40 559461 / DFM-16-40-B-PPV-A-KF 559478 / DFM-20-40-B-PPV-A-KF 609350 / DFM-25-40-B-PPV-A-KF 8161437 / DFM-32-40-B-PPV-A-KF – –
50 559462 / DFM-16-50-B-PPV-A-KF 559479 / DFM-20-50-B-PPV-A-KF 604962 / DFM-25-50-B-PPV-A-KF 609359 / DFM-32-50-B-PPV-A-KF 8161442 / DFM-40-50-B-PPV-A-KF 609361 / DFM-50-50-B-PPV-A-KF
80 559463 / DFM-16-80-B-PPV-A-KF 559480 / DFM-20-80-B-PPV-A-KF 609352 / DFM-25-80-B-PPV-A-KF 609355 / DFM-32-80-B-PPV-A-KF 8161444 / DFM-40-80-B-PPV-A-KF 8161449 / DFM-50-80-B-PPV-A-KF
100 559464 / DFM-16-100-B-PPV-A-KF 559481 / DFM-20-100-B-PPV-A-KF 8161427 / DFM-25-100-B-PPV-A-KF 609357 / DFM-32-100-B-PPV-A-KF 8165514 / DFM-40-100-B-PPV-A-KF 8161450 / DFM-50-100-B-PPV-A-KF
125 559465 / DFM-16-125-B-PPV-A-KF 559482 / DFM-20-125-B-PPV-A-KF 8161429 / DFM-25-125-B-PPV-A-KF 609358 / DFM-32-125-B-PPV-A-KF 8161447 / DFM-40-125-B-PPV-A-KF –
160 – 559483 / DFM-20-160-B-PPV-A-KF 609353 / DFM-25-160-B-PPV-A-KF 609356 / DFM-32-160-B-PPV-A-KF – –
200 – 559484 / DFM-20-200-B-PPV-A-KF 8161430 / DFM-25-200-B-PPV-A-KF 8161438 / DFM-32-200-B-PPV-A-KF – –
250 – – – 8161439 / DFM-32-250-B-PPV-A-KF – –

Accessories

Accessory For Ø [mm] Part no. Type
Centring sleeve ZBH – 8146543 ZBH-5-B
– 8146544 ZBH-7-B
– 8137184 ZBH-9-B
– 8137185 ZBH-12-B
– 191409 ZBH-15
Proximity switch SMT-10G 6, 10 547862 SMT-10G-PS-24V-E-2.5Q-OE
6, 10 547863 SMT-10G-PS-24V-E-0.3Q-M8D
6, 10 8065030 SMT-10G-NS-24V-E-2.5Q-OE
6, 10 8065029 SMT-10G-NS-24V-E-0.3Q-M8D
Slot cover ABP-5-S – 151680 ABP-5-S
– – –
One-way flow control valve GRLA 6, 10 175038 GRLA-M3
6, 10 175041 GRLA-M3-QS-3
12 ... 25 193137 GRLA-M5-QS-3-D
12 ... 25 193138 GRLA-M5-QS-4-D
12 ... 25 193139 GRLA-M5-QS-6-D
One-way flow control valve GRLA (G1/8) 32 ... 63 193142 GRLA-1/8-QS-3-D
32 ... 63 193143 GRLA-1/8-QS-4-D
32 ... 63 193144 GRLA-1/8-QS-6-D
32 ... 63 193145 GRLA-1/8-QS-8-D
One-way flow control valve GRLA (G1/4) 50, 63 193146 GRLA-1/4-QS-6-D
50, 63 193147 GRLA-1/4-QS-8-D
50, 63 193148 GRLA-1/4-QS-10-D
One-way flow control valve GRLA (G3/8) 80, 100 193149 GRLA-3/8-QS-6-D
80, 100 193150 GRLA-3/8-QS-8-D
80, 100 193151 GRLA-3/8-QS-10-D
Proximity switch SMT-8M 12 ... 100 574335 SMT-8M-A-PS-24V-E-2.5-OE
Proximity switch SME-8M 12 ... 100 543862 SME-8M-DS-24V-K-2.5-OE
Inductive distance sensor SOIA – 8161194 SOIA-M8PB-PNLK-LE
Connecting cable NEBA (M8, straight) – 8078223 NEBA-M8G3-U-2.5-N-LE3
Connecting cable NEBA (M12, straight) – 8078236 NEBA-M12G5-U-2.5-N-LE3

*Specifications may vary depending on the selected Festo DNC Cylinder / Guided Drive DFM/DFM-B model.

Our Locations
