Festo Rotary Actuators – Semi-rotary Drive DRRS

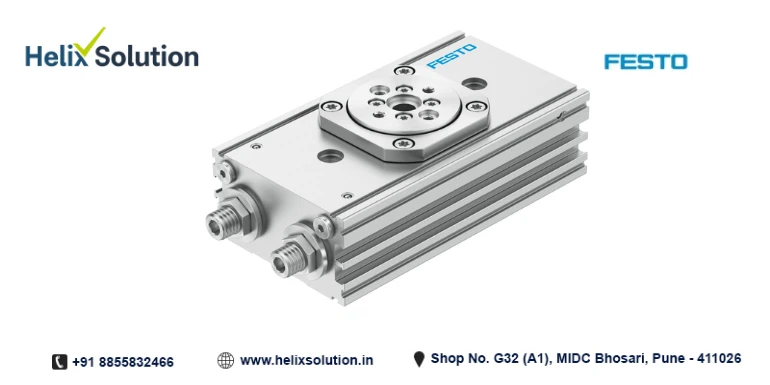

Festo Rotary Actuators - Semi-rotary Drive DRRS

Technical Specifications – Semi-rotary Drive DRRS

Festo semi-rotary drives DRRS operate on the rack-and-pinion principle and are extremely accurate in the end positions. They offer high load-bearing capacity with precise and backlash-free bearings, high mass moments of inertia, defined interfaces, and are perfectly suited for handling applications.

Key Features

  • Rack-and-pinion principle
  • Extremely accurate in the end positions
  • High load-bearing capacity for the bearing, precise and backlash-free
  • High mass moments of inertia
  • Defined interfaces
  • Compressed air connection on both sides for the larger models
  • Slots on both sides for mounting proximity switches
  • Choice of mounting options
  • Perfectly suited for handling applications

General Technical Data

Specification Size 8 Size 10 Size 12 Size 16 Size 20 Size 25
Design Rack and pinion
Mode of operation Double-acting
Pneumatic connection M3 M3 M5 M5 M5 M5
Type of mounting With mounting kit / With through-hole / With female thread
Swivel angle 180 deg
Cushioning [P] Elastic cushioning rings/plates on both sides
Cushioning [Y9] – – Shock absorber, self-adjusting, linear, at both ends
Repetition accuracy 0.05 deg 0.05 deg 0.05 deg 0.07 deg 0.07 deg 0.07 deg
Axial eccentricity poppet valve <0.05 mm <0.05 mm <0.05 mm <0.07 mm <0.07 mm <0.07 mm
Position detection Via proximity switch
Mounting position Any

Operating and Environmental Conditions

Specification Size 8 [P] Size 8 [Y9] Size 10 [P] Size 10 [Y9] Size 12 [P] Size 12 [Y9] Size 16 [P] Size 16 [Y9] Size 20 [P] Size 20 [Y9] Size 25 [P] Size 25 [Y9]
Operating pressure [MPa] 0.3 ... 0.8 0.2 ... 0.8 0.3 ... 0.8 0.2 ... 0.8 0.3 ... 0.8 0.2 ... 0.8 0.3 ... 0.8 0.2 ... 0.8 0.3 ... 0.8 0.2 ... 0.8 0.3 ... 0.8 0.2 ... 0.8
Operating pressure [bar] 3 ... 8 2 ... 8 3 ... 8 2 ... 8 3 ... 8 2 ... 8 3 ... 8 2 ... 8 3 ... 8 2 ... 8 3 ... 8 2 ... 8
Operating pressure [psi] 43.5 ... 116 29 ... 116 43.5 ... 116 29 ... 116 43.5 ... 116 29 ... 116 43.5 ... 116 29 ... 116 43.5 ... 116 29 ... 116 43.5 ... 116 29 ... 116
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating/pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
Ambient temperature 0 ... 60°C
Storage temperature -20 ... 60°C
Corrosion resistance class CRC 1 – Low corrosion stress

Weight

Specification Size 8 Size 10 Size 12 Size 16 Size 20 Size 25
Product weight 135 g 230 g 310 g 630 g 790 g 1,240 g

Forces and Torques

Specification Size 8 Size 10 Size 12 Size 16 Size 20 Size 25
Max. axial load static 50 N 60 N 80 N 140 N 350 N 450 N
Max. bending moment 1.3 Nm 1.8 Nm 2 Nm 4 Nm 5 Nm 10 Nm
Theoretical torque at 0.6 MPa (6 bar, 87 psi) 0.29 Nm 0.56 Nm 0.9 Nm 2.1 Nm 3.3 Nm 6.6 Nm
Permissible mass moment of inertia – [P] cushioning 0.0005 kgm² 0.0015 kgm² 0.005 kgm² 0.01 kgm² 0.008 kgm² 0.0175 kgm²
Permissible mass moment of inertia – [Y9] cushioning – – 0.02 kgm² 0.03 kgm² 0.04 kgm² 0.06 kgm²

Swivel Angle

Specification Size 8 [P] Size 8 [Y9] Size 10 [P] Size 10 [Y9] Size 12 [P] Size 12 [Y9] Size 16 [P] Size 16 [Y9] Size 20 [P] Size 20 [Y9] Size 25 [P] Size 25 [Y9]
Swivel angle 180 deg
Min. swivel angle 45 deg 80 deg 45 deg 80 deg 45 deg 80 deg 45 deg 80 deg 45 deg 80 deg 45 deg 80 deg
Max. swivel angle 200 deg
Setting range of swivel angle for each end position 10 / -100 deg (continuously adjustable)
Cushioning angle 32.2 deg 25.8 deg 23.5 deg 34.7 deg 19.5 deg 32.5 deg 27.5 deg 32.8 deg 25.5 deg 40.8 deg – –

Materials

Component Size 8 Size 10 Size 12 Size 16 Size 20 Size 25
Material housing Anodised aluminium
Material drive shaft Tempered steel
Flange shaft material Wrought aluminium alloy
Pinion material Tempered steel
Material seals TPE-U(PU) TPE-U(PU) NBR TPE-U(PU)
Note on materials RoHS compliant; LABS (PWIS) conformity: VDMA24364-C1-L
Cleanroom suitability Class 9 according to ISO 14644-1
Suitability for Li-ion battery production Suitable for battery production with reduced Cu/Zn/Ni values (F1a)

Type Code

Position Code Description
001 Series DRRS Semi-rotary drive
002 Size [mm] 8 / 10 / 12 / 16 / 20 / 25 Size
003 Nominal swivel angle [°] 180 180°
004 Output shaft FH Flanged shaft, hollow (can carry electrical signals or compressed air)
005 Cushioning P / Y9 Elastic cushioning rings/plates on both sides / Shock absorber, self-adjusting, linear, at both ends
006 Position sensing A For proximity sensor

Ordering Data – With Cushioning P

Cushioning Size Part no. Type
Elastic cushioning rings/plates on both sides 8 8163605 DRRS-8-180-FH-PA
10 8163606 DRRS-10-180-FH-PA
12 8163607 DRRS-12-180-FH-PA
16 8163609 DRRS-16-180-FH-PA
20 8163611 DRRS-20-180-FH-PA
25 8163613 DRRS-25-180-FH-PA

Ordering Data – With Cushioning Y9

Cushioning Size Part no. Type
Shock absorber, self-adjusting, linear, at both ends 12 8163608 DRRS-12-180-FH-Y9A
16 8163610 DRRS-16-180-FH-Y9A
20 8163612 DRRS-20-180-FH-Y9A
25 8163614 DRRS-25-180-FH-Y9A

Accessories

Accessory For Size Material Weight Part no. Type
Drive shaft adapter DARF-Q13-... 12 Tempered steel 50 g 8200997 DARF-Q13-12
16 Tempered steel 75 g 8200998 DARF-Q13-16
20 Tempered steel 93 g 8200999 DARF-Q13-20
25 Tempered steel 160 g 8201000 DARF-Q13-25
Push-on flange DARF-Q13-...-1 8 Anodised wrought aluminium alloy 11 g 8163619 DARF-Q13-8-1
10 Anodised wrought aluminium alloy 14 g 8163620 DARF-Q13-10-1
12 Anodised wrought aluminium alloy 23 g 8163621 DARF-Q13-12-1
16 Anodised wrought aluminium alloy 52 g 8163622 DARF-Q13-16-1
20 Anodised wrought aluminium alloy 66 g 8163623 DARF-Q13-20-1
25 Anodised wrought aluminium alloy 94 g 8163624 DARF-Q13-25-1
Profile mounting EAHF-L2-25-P 8 ... 25 Anodised wrought aluminium alloy 19 g 4835684 EAHF-L2-25-P
Profile mounting EAHF-L2-25-P-S 8 ... 25 Anodised wrought aluminium alloy 4 g 5183153 EAHF-L2-25-P-S
Shock absorber DYSD-Q13-4-4-Y1F-Y9 12 High-alloy steel 6.5 g 8199038 DYSD-Q13-4-4-Y1F-Y9
Shock absorber DYSD-Q13-5-5-Y1F-Y9 16 High-alloy steel 12 g 8199039 DYSD-Q13-5-5-Y1F-Y9
Shock absorber DYSD-Q13-7-5-Y1F-Y9 20 High-alloy steel 20 g 8199040 DYSD-Q13-7-5-Y1F-Y9
Shock absorber DYSD-Q13-8-8-Y1F-Y9 25 High-alloy steel 41.5 g 8199041 DYSD-Q13-8-8-Y1F-Y9
Centring sleeve ZBH-5-B 8, 10, 12 Steel 1 g 8146543 ZBH-5-B
Centring sleeve ZBH-7-B 8, 10, 12, 16, 20 Steel 1 g 8146544 ZBH-7-B
Centring sleeve ZBH-9-B 12, 16, 20, 25 Steel 2 g 8137184 ZBH-9-B
Centring sleeve ZBH-12-B 16, 20, 25 Steel 1 g 8137185 ZBH-12-B
Centring sleeve ZBH-15 25 High-alloy stainless steel 3 g 191409 ZBH-15
One-way flow control valve GRLA-M3-QS-3 8 ... 12 – 7 g 175041 GRLA-M3-QS-3
One-way flow control valve GRLA-M5-QS-3-D 8 ... 25 – 13 g 193137 GRLA-M5-QS-3-D
One-way flow control valve GRLA-M5-QS-4-D 8 ... 25 – – 193138 GRLA-M5-QS-4-D
One-way flow control valve GRLA-M5-QS-6-D 8 ... 25 – – 193139 GRLA-M5-QS-6-D
Proximity switch SMT-10M-PS-24V-E-2,5-L-OE 8 ... 12 – – 551373 SMT-10M-PS-24V-E-2,5-L-OE
Proximity switch SMT-10M-PS-24V-E-0,3-L-M8D 8 ... 12 – – 551375 SMT-10M-PS-24V-E-0,3-L-M8D
Proximity switch SMT-8M-A-PS-24V-E-2,5-OE 16 ... 25 – – 574335 SMT-8M-A-PS-24V-E-2,5-OE
Proximity switch SMT-8M-A-PS-24V-E-0,3-M8D 16 ... 25 – – 574334 SMT-8M-A-PS-24V-E-0,3-M8D
Connecting cable NEBA-M8G3-U-2.5-N-LE3 – – – 8078223 NEBA-M8G3-U-2.5-N-LE3
Connecting cable NEBA-M8G3-U-5-N-LE3 – – – 8078224 NEBA-M8G3-U-5-N-LE3

*Specifications may vary depending on the selected Festo Rotary Actuators / Semi-rotary Drive DRRS model.
