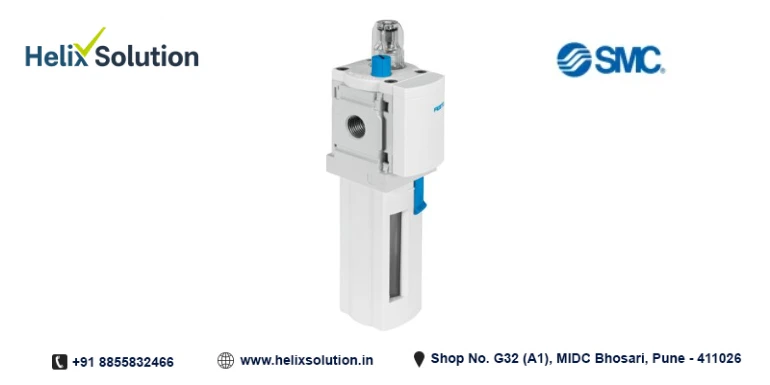

Technical Specifications – Lubricator MS4-LOE
The proportional lubricator adds a precisely adjustable amount of oil to the compressed air.
The pressure drop that occurs when air flows through a Venturi nozzle is used to feed oil
from a reservoir to the drip cap. From there, the oil drips into the air duct directly
behind the proportional valve, where it is atomised. The amount of oil mist is proportional
to the compressed air flow rate.
General Technical Data
| Specification |
G1/8 |
G1/4 |
G3/8 |
| Pneumatic connection, port 1 |
G1/8 |
G1/4 |
G3/8 |
| Pneumatic connection, port 2 |
G1/8 |
G1/4 |
G3/8 |
| Bowl type |
Plastic tray with plastic basket |
Plastic tray with plastic basket / Aluminium |
Plastic tray with plastic basket |
| Design |
Proportional standard mist lubricator |
| Type of mounting |
In-line installation / With accessories |
| Mounting position |
Vertical +/-5° |
| Min. flow rate for lubricator function |
40 l/min |
| Max. oil capacity |
30 cm³ |
36 cm³ |
30 cm³ |
| Standard nominal flow rate qnN (standardised to DIN 1343) |
1,100 l/min |
2,200 l/min |
2,200 l/min |
Operating and Environmental Conditions
| Specification |
Details |
| Operating pressure |
0.1 ... 1.2 MPa / 1 ... 12 bar / 14.5 ... 174 psi |
| Operating pressure (with UL certification) |
1 ... 10 bar |
| Operating medium |
Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases |
| Note on operating and pilot medium |
Lubricated operation possible |
| Ambient temperature |
-10 ... 60°C |
| Media temperature |
-10 ... 60°C |
| Storage temperature |
-10 ... 60°C |
| Corrosion resistance class CRC |
2 – Moderate corrosion stress |
ATEX / Explosion Protection
| Specification |
Details |
| ATEX category gas |
II 2G |
| Explosion ignition protection type for gas |
Ex h IIC T6 Gb X |
| ATEX category dust |
II 2D |
| Explosion ignition protection type for dust |
Ex h IIIC T60°C Db X |
| Explosion ambient temperature |
-10°C <= Ta <= +60°C |
| Explosion protection certification outside the EU |
EPL Db (GB), EPL Gb (GB) |
| CE mark |
To EU Explosion Protection Directive (ATEX) |
| UKCA marking |
To UK EX instructions |
Materials
| Specification |
Plastic tray with plastic basket |
Aluminium |
| Material housing |
Die-cast aluminium |
| Material bowl |
PC |
Die-cast aluminium, Wrought aluminium alloy |
| Material seals |
NBR |
– |
| Note on materials |
RoHS-compliant |
| LABS (PWIS) conformity |
VDMA24364-B1/B2-L |
Type Code
| Position |
Code |
Description |
| 001 Series |
MS |
MS series |
| 002 Size |
4 |
Grid dimension 40 mm |
| 003 Function |
LOE |
Compressed air lubricator |
| 004 Pneumatic connection |
1/8 / 1/4 / AGA / AGB / AGC / AQK / AQN / AQP |
Female thread G1/8 / G1/4 / Sub-base G1/8 / G1/4 / G3/8 / Sub-base 1/8 NPT /
1/4 NPT / 3/8 NPT |
| 005 Bowl type |
R / U |
Plastic tray with plastic basket / Aluminium |
| 006 Type of mounting |
None / WB / WBM / WP / WPM |
Without mounting bracket / Mounting centrally at rear (top and bottom) /
Mounting centrally at rear (top) / Mounting bracket basic design / Mounting
bracket for hooking in service unit components |
| 007 EU certification |
None / EX4 |
– / II 2GD |
| 008 UL certification |
None / UL1 |
– / cULus ordinary location for Canada and USA |
| 009 Flow direction |
None / Z |
Flow direction from left to right / Flow direction from right to left |
Ordering Data
| Pneumatic connection, port 1 |
Bowl type |
Flow direction |
Product weight |
Part no. |
Type |
| G1/8 |
Plastic tray with plastic basket |
Flow direction from left to right |
194 g |
529413 |
MS4-LOE-1/8-R |
| G1/4 |
Plastic tray with plastic basket |
Flow direction from left to right |
194 g |
529411 |
MS4-LOE-1/4-R |
| G1/4 |
Aluminium |
Flow direction from left to right |
354 g |
535790 |
MS4-LOE-1/4-U |
| G3/8 |
Plastic tray with plastic basket |
Flow direction from left to right |
325 g |
8232827 |
MS4-LOE-AGC-R |
Ordering Data – Modular Product System
| Short type code |
Part no. |
Type |
| MS4-LOE |
527701 |
MS4-LOE |
Accessories
| Accessory |
Size |
Part no. |
Type |
| Mounting bracket MS4-WP... |
4 |
526063 |
MS4-WPB |
| 4 |
526060 |
MS4-WPM-D |
| 4 |
541552 |
MS4-WPB-EX |
| 4 |
541554 |
MS4-WP-EX |
| 4 |
526061 |
MS4-WPM-2D |
| 4 |
532184 |
MS4-WP |
| Mounting bracket MS4-WB |
4 |
532185 |
MS4-WB |
| Mounting bracket MS4-WBM |
4 |
526062 |
MS4-WBM |
| Cover cap MS4-END |
4 |
538779 |
MS4-END |
| Module connector MS4-MV1 |
4 |
8119201 |
MS4-MV1 |
| Connecting plate-SET MS4-AG... |
4 |
526068 |
MS4-AGA |
| 4 |
541549 |
MS4-AGA-EX |
| 4 |
526069 |
MS4-AGB |
| Connecting plate-SET MS4-AG... |
4 |
541550 |
MS4-AGB-EX |
| Connecting plate-SET MS4-AG... |
4 |
526070 |
MS4-AGC |
| Connecting plate-SET MS4-AG... |
4 |
541551 |
MS4-AGC-EX |
| Special oil OFSW (1 litre) |
– |
152811 |
OFSW-32 |
*Specifications may vary according to the selected
Festo Lubricator model.
