Festo Air Regulator – MS-LR-B Series

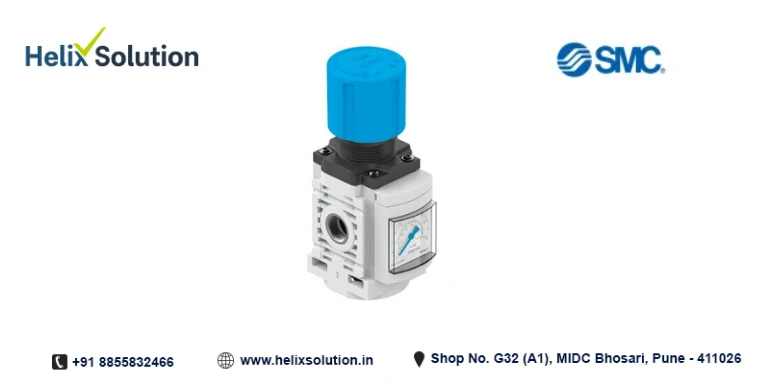

Festo Air Regulator MS-LR-B Series

Technical Specifications – Pressure Regulator MS-LR-B

For stepless, precise adjustment of the required operating pressure. The pressure regulator keeps the working pressure largely constant, irrespective of compressed air fluctuations in the network and due to air consumption.

General Technical Data

Specification Size 2 Size 4 Size 6
Pneumatic connection, port 1 M5, QS-6 G1/4 G1/2
Pneumatic connection, port 2 M5, QS-6 G1/4 G1/2
Standard nominal flow rate (standardised to DIN 1343) 170 ... 350 l/min 1,800 l/min 6,000 l/min
Pressure regulation range 0.05 ... 0.7 MPa 0.03 ... 0.7 MPa 0.03 ... 0.7 MPa
Pressure regulation range 0.5 ... 7 bar 0.3 ... 7 bar 0.3 ... 7 bar
Pressure regulation range 7.25 ... 101.5 psi 4.35 ... 101.5 psi 4.35 ... 101.5 psi
Max. pressure hysteresis 0.025 MPa / 0.25 bar / 3.625 psi 0.05 MPa / 0.5 bar / 7.25 psi 0.035 MPa / 0.35 bar / 5.075 psi
Design Directly actuated diaphragm regulator / Directly actuated piston regulator (model dependent)
Controller function Output pressure constant, With secondary venting, With return flow function
Type of mounting Front panel mounting, In-line installation, With accessories
Mounting position Optional
Actuator lock Rotary knob with detent
Pressure gauge (ANALOG) or Pressure display (DIGITAL) Prepared for G1/8, With pressure gauge

Operating and Environmental Conditions

Specification Size 2 Size 4 Size 6
Operating pressure 0.1 ... 1 MPa / 1 ... 10 bar / 14.5 ... 145 psi 0.1 ... 0.8 MPa / 1 ... 8 bar / 14.5 ... 116 psi 0.1 ... 1 MPa / 1 ... 10 bar / 15 ... 145 psi
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4], Inert gases
Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
Ambient temperature -5 ... 50°C
Media temperature -5 ... 50°C
Storage temperature -5 ... 50°C
Corrosion resistance class CRC 1 – Low corrosion stress (to Festo standard FN 940070)

Materials

Specification Size 2 Size 4 Size 6
Material housing PA-reinforced
Material rotary knob POM
Material valve stem Wrought aluminium alloy, NBR POM
Material membrane NBR –
Material spring High-alloy steel High-alloy steel, Galvanised steel
Note on materials RoHS-compliant
LABS (PWIS) conformity VDMA24364-B1/B2-L
Cleanroom class Class 4 according to ISO 14644-1 Class 7 according to ISO 14644-1

Type Code

Position Code Description
001 Series MS MS series
002 Size 2 / 4 / 6 Grid dimension 25 mm / 40 mm / 62 mm
003 Function LR Pressure regulator
004 Pneumatic connection M5 / QS6 / 1/4 / 1/2 Female thread M5 / Push-in connector 6 mm / Female thread G1/4 / Female thread G1/2
005 Pressure regulation range D6 0.3 ... 7 bar
006 Pressure gauge alternatives A8 / AG / AR Adapter for EN pressure gauge 1/8, without pressure gauge / MS pressure gauge / With pressure gauge
007 Alternative pressure gauge scale BAR / MPA bar / MPa
008 Special material properties None / F1A – / Recommended for production plants for manufacturing lithium-ion batteries, F1A
009 Version B Second generation

Ordering Data

Size Pneumatic connection, port 1 Pressure gauge Product weight Cleanroom class Part no. Type
2 M5 Prepared for G1/8 30.8 g Class 4 according to ISO 14644-1 8086637 MS2-LR-M5-D6-A8-B
With pressure gauge 38.6 g 8086628 MS2-LR-M5-D6-AR-BAR-B
With pressure gauge 38.6 g 8086636 MS2-LR-M5-D6-AR-MPA-B
2 QS-6 Prepared for G1/8 28.3 g 8086640 MS2-LR-QS6-D6-A8-B
With pressure gauge 36.1 g 8086638 MS2-LR-QS6-D6-AR-BAR-B
With pressure gauge 36.1 g 8086639 MS2-LR-QS6-D6-AR-MPA-B
4 G1/4 Prepared for G1/8 163 g Class 7 according to ISO 14644-1 8099360 MS4-LR-1/4-D6-A8-B
With pressure gauge 165 g 8099359 MS4-LR-1/4-D6-AG-MPA-B
With pressure gauge 165 g 8099358 MS4-LR-1/4-D6-AG-BAR-B
6 G1/2 Prepared for G1/8 479 g 8099203 MS6-LR-1/2-D6-A8-B
With pressure gauge 482 g 8099205 MS6-LR-1/2-D6-AG-BAR-B
With pressure gauge 482 g 8099204 MS6-LR-1/2-D6-AG-MPA-B

Ordering Data – Products for Battery Production (F1A)

Size Pneumatic connection, port 1 Pressure gauge Product weight Cleanroom class Part no. Type
2 M5 Prepared for G1/8 30.8 g Class 4 according to ISO 14644-1 8167260 MS2-LR-M5-D6-A8-F1A-B
With pressure gauge 38.6 g 8167259 MS2-LR-M5-D6-AR-MPA-F1A-B
With pressure gauge 38.6 g 8167258 MS2-LR-M5-D6-AR-BAR-F1A-B
2 QS-6 Prepared for G1/8 28.3 g 8167263 MS2-LR-QS6-D6-A8-F1A-B
With pressure gauge 36.1 g 8167262 MS2-LR-QS6-D6-AR-MPA-F1A-B
With pressure gauge 36.1 g 8167261 MS2-LR-QS6-D6-AR-BAR-F1A-B
4 G1/4 Prepared for G1/8 163 g Class 7 according to ISO 14644-1 8175243 MS4-LR-1/4-D6-A8-F1A-B
With pressure gauge 165 g 8175241 MS4-LR-1/4-D6-AG-BAR-F1A-B
With pressure gauge 165 g 8175242 MS4-LR-1/4-D6-AG-MPA-F1A-B
6 G1/2 Prepared for G1/8 479 g 8175352 MS6-LR-1/2-D6-A8-F1A-B
With pressure gauge 482 g 8175354 MS6-LR-1/2-D6-AG-BAR-F1A-B
With pressure gauge 482 g 8175353 MS6-LR-1/2-D6-AG-MPA-F1A-B

Accessories

Accessory Size Product weight Part no. Type
Pressure gauge PAGN (0 ... 10 bar) 26 8 g 8088985 PAGN-26-10-G18S
26 8 g 8088986 PAGN-26-1M-G18S
Mounting bracket MS...-WR-B 2 13.8 g 8087978 MS2-WR-B
2 14.6 g 8167322 MS2-WR-F1A-B
4 49 g 8149680 MS4-WR-B
4 49 g 8176693 MS4-WR-F1A-B
6 90 g 8176696 MS6-WR-F1A-B
Mounting bracket MS...-WR-B 6 90 g 8149681 MS6-WR-B
Wall mounting kit MS...-WPE-B 4 30 g 8118600 MS4-WPE-B
Wall mounting kit MS...-WPE-B 6 58 g 8118599 MS6-WPE-B
Nut MS...-WRS 2 0.7 g 8098037 MS2-WRS
4 6.9 g 532187 MS4-WRS
6 20.9 g 532188 MS6-WRS
Module connector MS...-MV1 4 13 g 8119201 MS4-MV1
4 36 g 8176695 MS4-MV1-F1A
6 33 g 8119204 MS6-MV1
6 54 g 8176697 MS6-MV1-F1A
Plug screw 2 4.6 g 8095766 MS2-G18S
