Festo Profile Cylinder – Compact Cylinders ADN/AEN

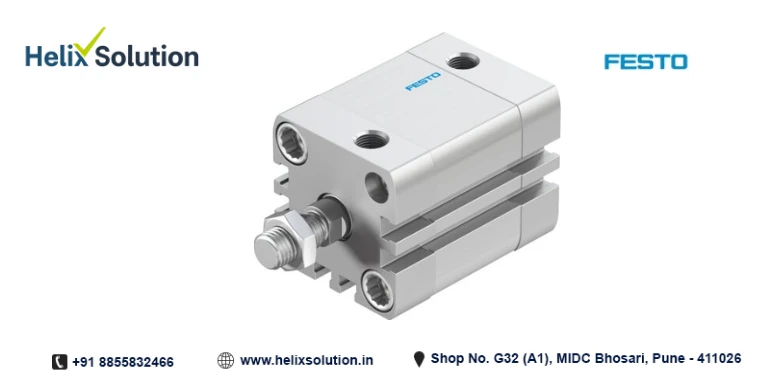

Festo Profile Cylinder - Compact Cylinders ADN/AEN to ISO 21287

Technical Specifications – Compact Cylinders ADN/AEN, to ISO 21287

The compact cylinders ADN (double-acting) and AEN (single-acting) comply with or are based on the ISO 21287 standard, depending on the piston diameter. Characterised by a compact design and a wide range of variants, they are ideal for confined installation spaces.

Key Features

  • Centring hole in the end cap suitable for centring pins ZBS
  • Magnet for contactless position sensing
  • Sensor slots on three sides for flush mounting of proximity switches
  • Integrated cushioning for absorbing residual energy
  • Piston rod with choice of male or female thread
  • Mounting option: female thread and through-hole
  • Complies with or is based on ISO 21287 standard (depending on piston diameter)

General Technical Data – Compact Cylinder ADN

Specification Ø 12 Ø 16 Ø 20 Ø 25 Ø 32 Ø 40 Ø 50 Ø 63 Ø 80 Ø 100 Ø 125
Standard Based on ISO 21287 Conforms to ISO 21287 Based on ISO 21287
Design Piston / Piston rod / Cylinder barrel
Operating mode Double-acting
Cushioning P Elastic cushioning rings/plates at both ends
Cushioning PPS – – Pneumatic cushioning, self-adjusting at both ends –
Cushioning length PPS [mm] – – 3 3.5 4 5 6 7 7.5 10 –
Position sensing Via proximity switch
Type of mounting With through-hole / With female thread / With accessories
Mounting position Any

Pneumatic Connection and Piston Rod Thread

Specification Ø 12 Ø 16 Ø 20 Ø 25 Ø 32 Ø 40 Ø 50 Ø 63 Ø 80 Ø 100 Ø 125
Pneumatic connection M5 M5 M5 M5 G1/8 G1/8 G1/8 G1/8 G1/8 G1/8 G1/4
Female piston rod thread (standard) – M3 M4 M6 M6 M8 M8 M10 M10 M12 M12
Male piston rod thread (standard) M5 M6 M8 M8 M10x1.25 M10x1.25 M12x1.25 M12x1.25 M16x1.5 M16x1.5 M20x1.5

Operating and Environmental Conditions

Specification Details
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating/pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
Operating pressure (standard) 0.1 ... 1 MPa / 1 ... 10 bar / 14.5 ... 145 psi
Operating pressure (PPS) 0.15 ... 1 MPa / 1.5 ... 10 bar / 21.76 ... 145 psi
Operating pressure (S11 – low friction) 0.045 ... 1 MPa / 0.45 ... 10 bar / 6.53 ... 145 psi
Ambient temperature (standard) –20 ... +80°C
Ambient temperature (S6 – heat-resistant seals) 0 ... +120°C
Ambient temperature (S10, S11) +5 ... +80°C
Ambient temperature (TT – low temperature) –40 ... +80°C
Corrosion resistance class CRC (standard) 2 – Moderate corrosion stress
Corrosion resistance class CRC (R3) 3 – High corrosion stress
Corrosion resistance class CRC (F1A) 0 – No corrosion stress

Theoretical Forces and Impact Energy – ADN

Specification Ø 12 Ø 16 Ø 20 Ø 25 Ø 32 Ø 40 Ø 50 Ø 63 Ø 80 Ø 100 Ø 125
Theoretical force at 6 bar, advancing [N] 68 121 188 295 483 754 1178 1870 3016 4712 7363
Theoretical force at 6 bar, retracting [N] 51 90 141 247 415 686 1057 1750 2827 4524 7069
Max. impact energy in end positions [J] 0.07 0.15 0.2 0.3 0.4 0.7 1 1.3 1.8 2.5 3.3
Max. energy conversion capacity PPS [J] – – 0.65 0.8 1 1.7 2.8 4.8 8 12 –

Weight – ADN Basic Version

Specification Ø 12 Ø 16 Ø 20 Ø 25 Ø 32 Ø 40 Ø 50 Ø 63 Ø 80 Ø 100 Ø 125
Product weight with 0 mm stroke [g] 64 75 128 181 265 361 531 755 1140 1741 2952
Additional weight per 10 mm stroke [g] 12 14 22 26 29 38 51 60 80 99 116
Moving mass with 0 mm stroke [g] 11 18 32 41 76 103 164 222 431 595 1020
Additional mass per 10 mm stroke [g] 2 4 6 6 9 9 16 16 25 25 29

Materials

Component Material
Cover (Ø 12 ... 63) Anodised aluminium
Cover (Ø 80 ... 125) Coated die-cast aluminium
Cylinder barrel Anodised aluminium
Piston rod (basic version) High-alloy steel
Piston rod (R8 variant) Hard-chrome-plated tempered steel
Piston rod (K10 variant) Anodised aluminium
Seals Polyurethane (standard) / Fluoro rubber (S6)
Note on materials RoHS-compliant; LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom class (Ø 12 ... 63) Class 5 to ISO 14644-1

Type Code – ADN (Double-Acting)

Position Code Description
001 Series ADN Compact cylinder, double-acting
002 Piston diameter [mm] 12 / 16 / 20 / 25 / 32 / 40 / 50 / 63 / 80 / 100 / 125 Piston diameter
003 Stroke range [mm] 1 ... 500 Stroke length
004 Piston rod thread type A / I Male thread / Female thread
005 Cushioning P / PPS Elastic cushioning rings/plates both sides / Pneumatic self-adjusting both ends
006 Position sensing A For proximity sensor
007 Special material properties None / F1A – / Recommended for Li-ion battery production
008 Protection against rotation None / Q – / Square piston rod
009 Stroke adjustment Without / 10KE – / 10 mm, extending
010 Piston rod type At one end / S2 / S20 – / Through piston rod / Through, hollow piston rod
011 Custom thread "M5"K5 ... "M20x1,5"K5 Custom piston rod thread
012 Temperature range Standard / S6 – / Heat-resistant seals max. 120 °C
013 Constant motion Standard / S10 – / Uniform, slow movement
014 Running characteristics Standard / S11 – / Low friction
015 Improved running performance None / K10 – / Smooth anodised aluminium coated piston rod
016 Corrosion protection Standard / R3 – / High corrosion protection
017 Increased lateral force None / S1 – / Reinforced piston rod
018 Captive rating plate Glued / TL Rating plate, glued / Laser etched rating plate
019 Low temperature None / TT – / –40 °C ... +80 °C
020 Scraper variant Standard / R8 – / Dust protection
021 EU certification None / EX4 – / II 2GD

Ordering Data – ADN, Piston Rod with Female Thread / Male Thread (P Cushioning)

Piston Ø [mm] Stroke [mm] Part no. (I – Female) Type (I – Female) Part no. (A – Male) Type (A – Male)
12 5 536211 ADN-12-5-I-P-A 536204 ADN-12-5-A-P-A
10 536212 ADN-12-10-I-P-A 536205 ADN-12-10-A-P-A
25 536215 ADN-12-25-I-P-A 536208 ADN-12-25-A-P-A
16 5 536226 ADN-16-5-I-P-A 536219 ADN-16-5-A-P-A
10 536227 ADN-16-10-I-P-A 536220 ADN-16-10-A-P-A
25 536230 ADN-16-25-I-P-A 536223 ADN-16-25-A-P-A
20 5 536242 ADN-20-5-I-P-A 536234 ADN-20-5-A-P-A
10 536243 ADN-20-10-I-P-A 536235 ADN-20-10-A-P-A
25 536246 ADN-20-25-I-P-A 536238 ADN-20-25-A-P-A
25 5 536259 ADN-25-5-I-P-A 536251 ADN-25-5-A-P-A
10 536260 ADN-25-10-I-P-A 536252 ADN-25-10-A-P-A
25 536263 ADN-25-25-I-P-A 536255 ADN-25-25-A-P-A
32 5 536278 ADN-32-5-I-P-A 536268 ADN-32-5-A-P-A
10 536279 ADN-32-10-I-P-A 536269 ADN-32-10-A-P-A
25 536282 ADN-32-25-I-P-A 536272 ADN-32-25-A-P-A
40 5 536299 ADN-40-5-I-P-A 536289 ADN-40-5-A-P-A
10 536300 ADN-40-10-I-P-A 536290 ADN-40-10-A-P-A
25 536303 ADN-40-25-I-P-A 536293 ADN-40-25-A-P-A
50 5 536320 ADN-50-5-I-P-A 536310 ADN-50-5-A-P-A
10 536321 ADN-50-10-I-P-A 536311 ADN-50-10-A-P-A
25 536324 ADN-50-25-I-P-A 536314 ADN-50-25-A-P-A
63 10 536342 ADN-63-10-I-P-A 536332 ADN-63-10-A-P-A
15 536343 ADN-63-15-I-P-A 536333 ADN-63-15-A-P-A
25 536345 ADN-63-25-I-P-A 536335 ADN-63-25-A-P-A
80 10 536363 ADN-80-10-I-P-A 536353 ADN-80-10-A-P-A
15 536364 ADN-80-15-I-P-A 536354 ADN-80-15-A-P-A
25 536366 ADN-80-25-I-P-A 536356 ADN-80-25-A-P-A
100 10 536384 ADN-100-10-I-P-A 536374 ADN-100-10-A-P-A
15 536385 ADN-100-15-I-P-A 536375 ADN-100-15-A-P-A
25 536387 ADN-100-25-I-P-A 536377 ADN-100-25-A-P-A

Variant Overview

Symbol Key Features Description
S1 Reinforced piston rod Increased lateral forces. Absorbs many times more lateral force than a basic cylinder
S2 Through piston rod The piston rod can be used for attachment at both ends of the cylinder
KE Stroke adjustment Through piston rod with adjustment component. For limiting the advancing end position
S6 Heat-resistant seals Temperature resistance up to max. 120°C
S10 Constant motion Very low break-away pressure; stick-slip-free slow movements
S11 Low friction Especially suitable for slow movements with considerably reduced system friction
S20 Through, hollow piston rod Can carry vacuum or compressed air through the hollow rod
K2 Extended male piston rod thread Extended thread length
K5 Special piston rod thread Metric coarse thread to ISO
K8 Extended piston rod Extended rod length
K10 Smooth anodised aluminium piston rod Ideal for welding environments; protection against welding spatter
KP With clamping unit Integrated clamping unit on the piston rod
EL With end-position locking Positive locking in the end position as a drop guard
Q Square piston rod Protection against rotation; for position-oriented feeding
R3 High corrosion protection All external surfaces comply with CRC 3 to Festo standard 940 070
R8 Dust protection with scraper Hard-chrome-plated piston rod with hard scraper
TL Captive rating plate Laser-etched rating plate for easy identification
TT Low temperature Temperature resistance down to max. –40°C
F1A Battery production Suitable for Li-ion battery production with reduced Cu/Zn/Ni values

Accessories

Accessory For Ø [mm] Part no. Type
Foot mounting HNA 12 537237 HNA-12
20 537239 HNA-20
32 537241 HNA-32
Flange mounting FNC 12 537245 FNC-12
32 174376 FNC-32
Swivel flange SNCL 12 537790 SNCL-12
32 174404 SNCL-32
Swivel flange SNCS 32 174397 SNCS-32
40 174398 SNCS-40
Clevis foot LBG 32 31761 LBG-32
40 31762 LBG-40
Clevis foot LBN 12/16 6058 LBN-12/16
20/25 6059 LBN-20/25
Swivel flange SNCB 32 174390 SNCB-32
40 174391 SNCB-40
50 174392 SNCB-50
Trunnion flange ZNCF 32 174411 ZNCF-32
40 174412 ZNCF-40
50 174413 ZNCF-50
Trunnion support LNZG 32 32959 LNZG-32
40, 50 32960 LNZG-40/50
Rod eye SGS 16 9254 SGS-M6
32, 40 9261 SGS-M10x1.25
Rod clevis SG 16 3110 SG-M6
32, 40 6144 SG-M10x1.25
Self-aligning rod coupler FK 12 30984 FK-M5
32, 40 6140 FK-M10x1.25
Proximity switch SMT-8M – 574335 SMT-8M-A-PS-24V-E-2.5-OE
– 574334 SMT-8M-A-PS-24V-E-0.3-M8D
Proximity switch SME-8M – 543862 SME-8M-DS-24V-K-2.5-OE
– 543861 SME-8M-DS-24V-K-0.3-M8D
One-way flow control valve GRLA 12–25 193137 GRLA-M5-QS-3-D
32–100 193143 GRLA-1/8-QS-4-D
Slot cover ABP-5-S – 151680 ABP-5-S
Multi-position kit DPNA 12 537263 DPNA-12

*Specifications may vary depending on the selected Festo Profile Cylinder (ADN/AEN) series and model.
